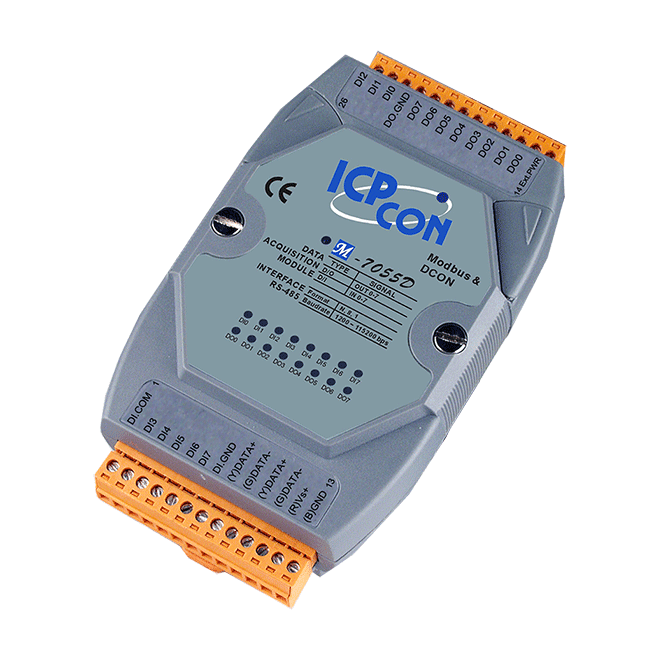

M-7055D 8-ch Isolated (Dry, Wet) DI & 8-ch Isolated (Source, PNP, 10~40 VDC) DO Module with LED Display


Key Features

• Source-type Digital Output Channels with Overload Protection
• All Digital Input Channels can be used as 16-bit Counters
• Short Circuit Protection
• 4 kV ESD Protection
• 3750 VDC Intra-module Isolation
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The ICP DAS M-7055 supports source-type output with short circuit protection. There are options to enable both power-on and safe values.

The M-7055D has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7055 has the same hardware specifications as the ICP DAS I-7055, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
