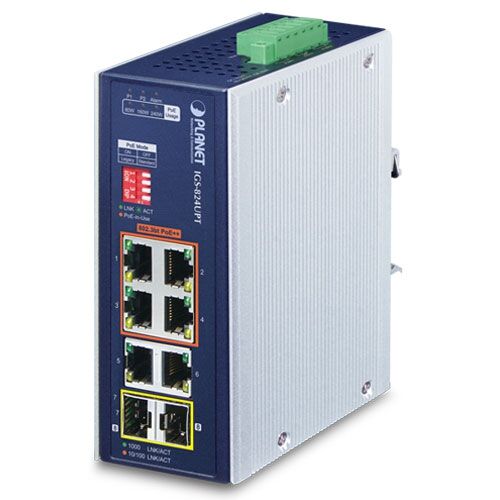

IGS-824UPT Industrial 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
£299.00
Key Features
- 6 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
- 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
- Complies with IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE
- Backward compatible with IEEE 802.3at Power over Ethernet Plus
- Up to 4 ports of IEEE 802.3bt/at devices powered
- Up to 240-watt PoE budget
- Supports PoE power up to 95 watts for each PoE port
- DIN-rail and wall-mount designs
- 48 to 54V DC, redundant power with reverse polarity protection
- -40 to 75 degrees C operating temperature
Description
The PLANET IGS-824UPT Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch features four 10/100/1000BASE-T ports and IEEE 802.3bt PoE++ (Power over Ethernet Plus Plus) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its two 100/1000BASE-X SFP fibre optic uplink ports provide long distance, high speed and stable data transmission to a remote core network.
The IGS-824UPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
The two mini-GBIC slots built in the IGS-824UPT support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fibre-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometres (multi-mode fibre) and 10/20/30/40/50/60/70/120 kilometres (single-mode fibre or WDM fibre). They are well suited for applications to uplink to backbone switch and monitoring centre in long distance.
