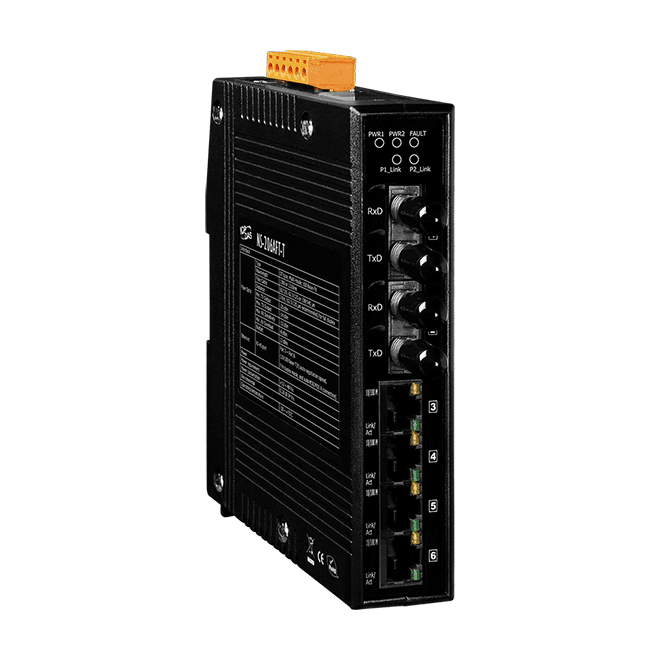

NS-206AFT-T 4-port 10/100 Mbps Ethernet with 2 fiber port Switch (Multi mode, ST connector) with plastic case


Key Features

  • Provides 2 x 100-FX fiber ports plus 4 x Ethernet ports
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Redundant dual +12 ~ 48 VDC power inputs
  • Multi-mode, ST Connector Fiber supports
  • Broadcast Storm protection


The ICP DAS NS-206AFT-T is a 4-port unmanaged Ethernet with 2 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions.

The NS-206AFT-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
