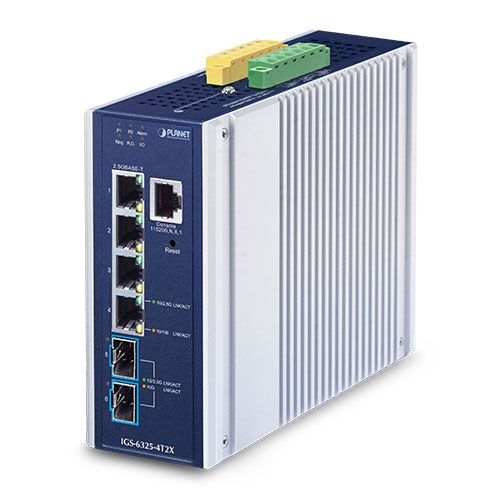

IGS-6325-4T2X Industrial Layer 3 4-Port 2.5GBASE-T + 2-Port 10GBASE-X SFP+ Managed Ethernet Switch
£425.00
Key Features
- 4* 10/100/1G/2.5GBASE-T RJ45 copper ports
- 2* 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
- One RJ45-to-RS232 console interface for basic management and setup
- Modbus TCP for real-time monitoring in the SCADA system
- IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
- Layer 3 IP routing features
- Quality of service
- DIN-rail and wall-mountable design
- IP30 aluminum case
- Supports ESD 6KV DC Ethernet protection
- -40 to 75 degrees C operating temperature
Description
The IGS-6325-4T2X is among PLANET’s first Industrial-grade, Multi-Gigabit Managed Ethernet Switch that features four 2.5GBASE-T ports, two 10GBASE-X SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for operating in remote areas stably within the temperature range from -40 to 75 degrees C.
With Multi-Gigabit Ethernet support, the IGS-6325-4T2X allows the use of the existing Cat5e and Cat6 cabling for higher speed connection but does not incur expenses and complexity brought by additional infrastructure. Once needed, the 10GBASE-X SFP+ ports can also offer even higher transmission speed and greater distance networking capability.
The IGS-6325-4T2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms.
The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.
The IGS-6325 Series is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.
