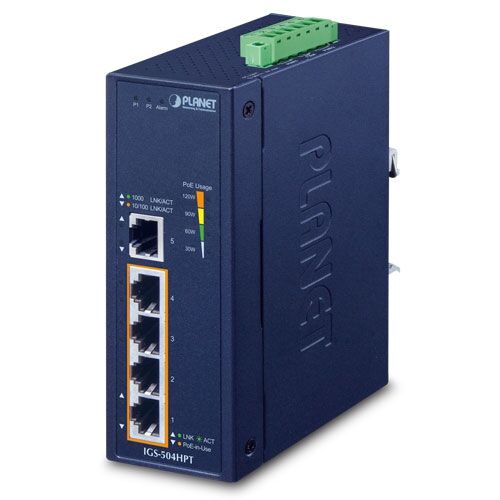

IGS-504HPT Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Gigabit Ethernet Switch

Description

With Plug and Play design, PLANET IGS-504HPT Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch, featuring four IEEE 802.3at PoE+ 10/100/1000BASE-T ports and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection, allows to automatically detect and configure internal and external peripherals.

The IGS-504HPT supports 12~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

To facilitate the 802.3at PoE+ usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IGS-504HPT adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IGS-504HPT provides an integrated power solution with a wide range of voltages (12~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~54V DC power supply inputs for high availability applications.

The compact sized IGS-504HPT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.
