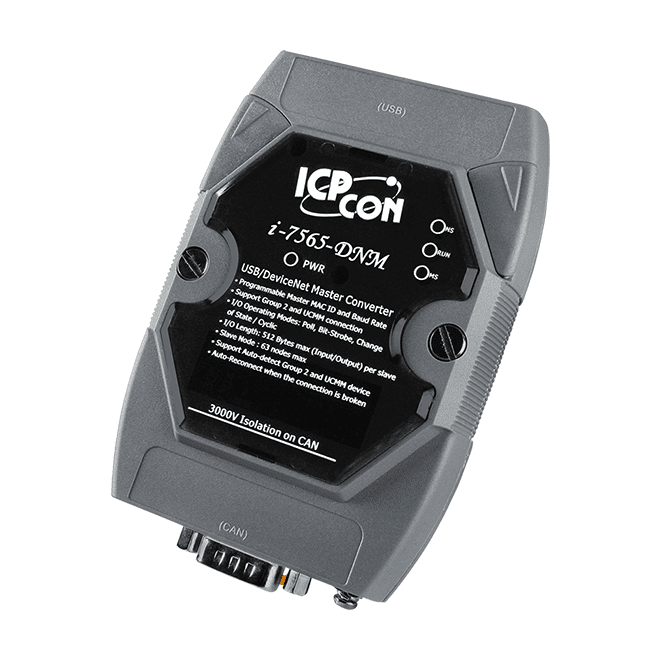

I-7565-DNM-G USB/DeviceNet Master Converter


Key Features

  • Programmable Master MAC ID
  • Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
  • Each port support maximum nodes up to 64
  • Support UCMM and Group 2 Only Server functions
  • The maximum Fragment number is (Input/Output) up to 64
  • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
  • Support Auto-Scan slave device function
  • Support on-line adding and removing devices
  • Support boot-up auto communicating with slave devices
  • Support Auto-Reconnect when the connection is broken


The ICP DAS I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a “Predefined Master-Slave connection Set”. The I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, I-7565-DNM uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example WinXP/Win7/Win10. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.
