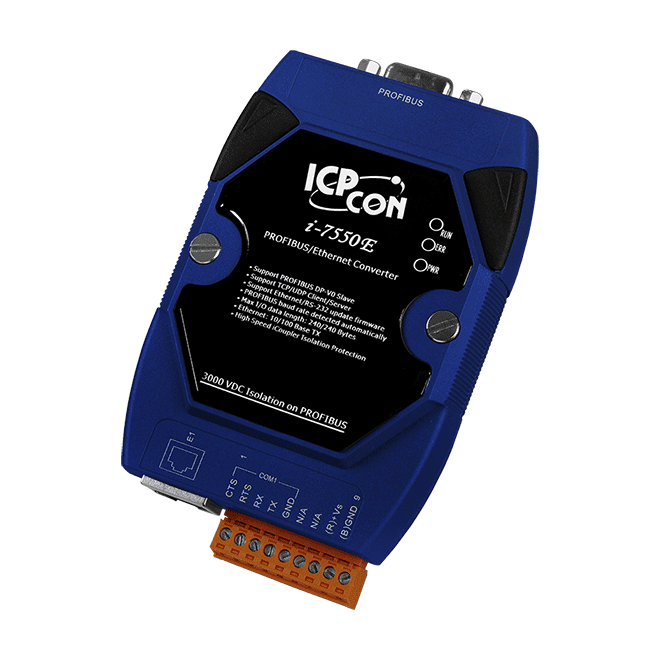

I-7550E PROFIBUS to Ethernet Converter (with plastic casing)

£319.00

Key Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • Address Setting : 0~126 set by DIP switch or EEPROM
  • Supports Ethernet Protocol : TCP/UDP Server/Client
  • Configuration : Web Configuration
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side
CE UKCA FCC RoHS WEEE

Description

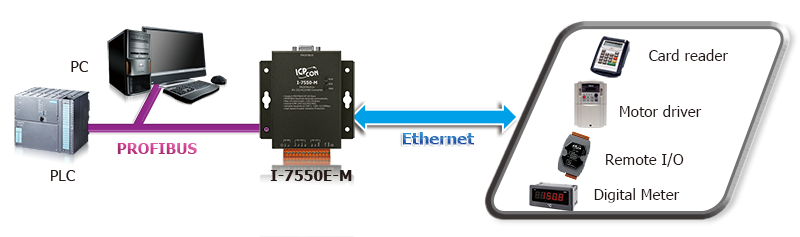

The ICP DAS I-7550E Converter is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access any kinds of Ethernet devices supporting TCP/UDP protocol.

The I-7550E can be set as TCP/UDP server and client, it’s flexible for user to match their requirement. In addition, the I-7550E module built-in web server, the user can set the module by web browser. By using this module, users can put their Ethernet devices into PROFIBUS network very easily.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation

I-7550E_en
