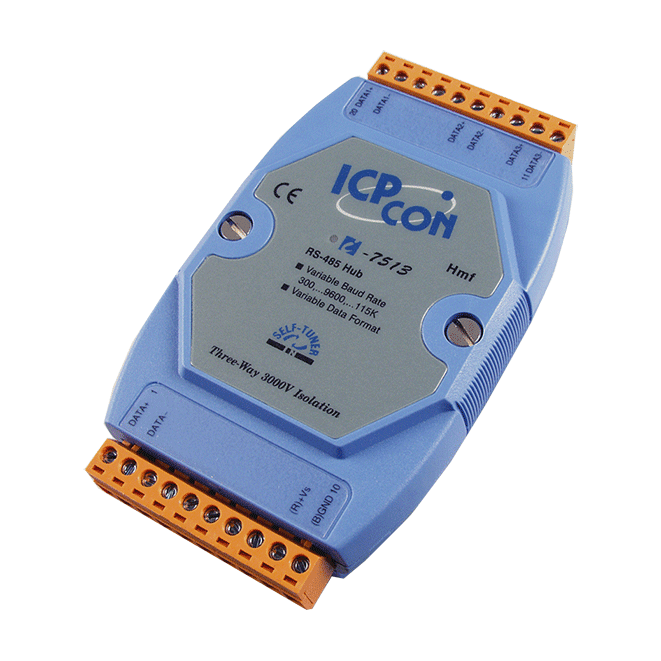

I-7513 Three Way Isolated RS-485 Active Star Wiring Hub


Key Features

• RS-485 Active Star Wiring Applications
• Automatic RS-485 Direction Control
• 3000 VDC Three Way Isolation Protection
• Power Input, +10 ~ +30 VDC
• ESD Protection for the RS-485 Data Line
• Operating Temperatures, -25 °C ~ +75 °C
• DIN-Rail


The ICP DAS I-7513 is a 3-ch RS-485 Active Star Wiring Hub. This unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 4,000 ft (1200 m) of cable on each channel. The ICP DAS I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.

The isolation site of the ICP DAS I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.
