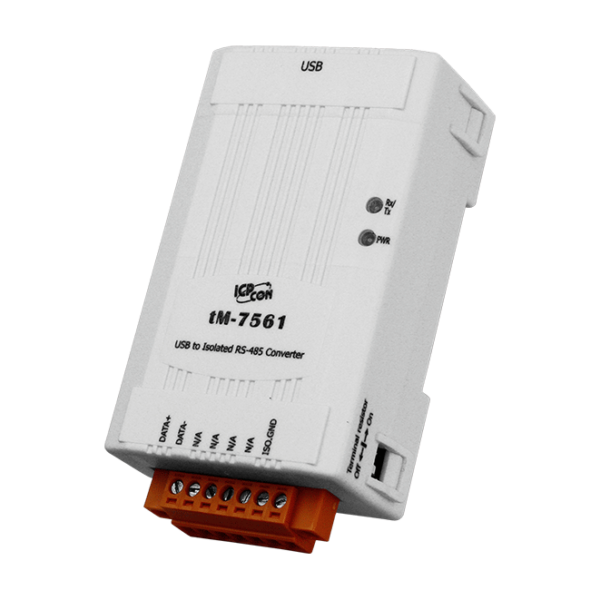

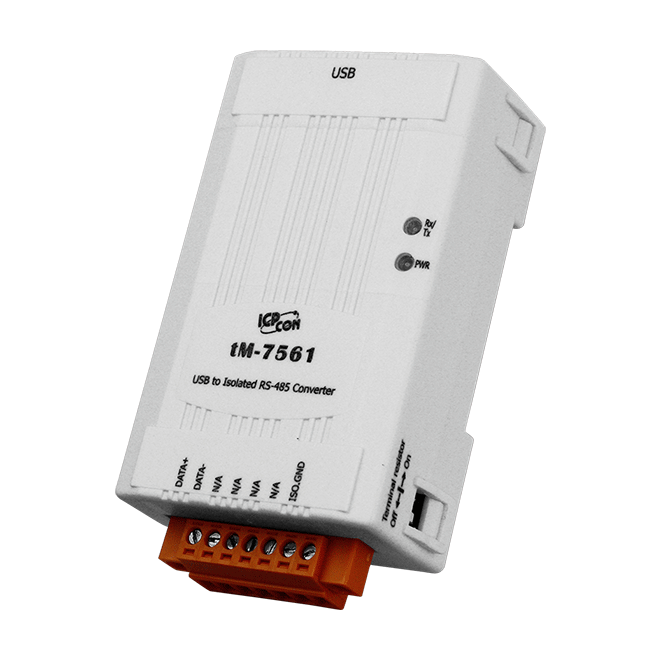

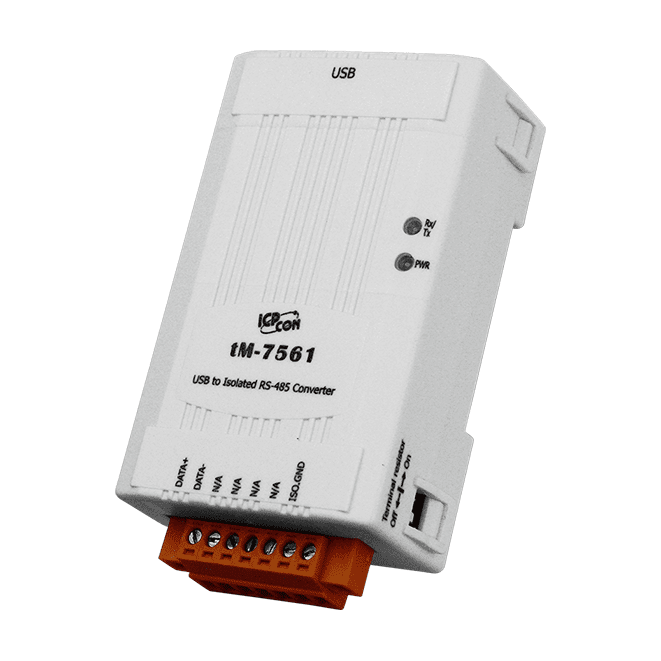

tM-7561 Tiny USB to Isolated RS-485 Converter with CA-USB18 Cable


Key Features

  • Fully Compliant with the USB 1.1/2.0 (High Speed)
  • Power and data flow indicator for troubleshooting
  • 2500 VDC Isolation Protection on the RS-485 side
  • Driver Supports Windows 98/ME/2000/XP (32/64-bit)/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)/10 (64-bit)/Linux
  • No External Power Supply required
  • Automatic RS-485 Direction Control
  • Low power consumption
  • Operating Temperatures, -25 °C ~ +75 °C
  • Tiny packaging fits on your DIN-Rail


Most industrial computer systems provide standard USB ports with limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The ICP DAS tM-7561 transparently converts USB signals into isolated RS-485 signal with no need to change any hardware or software. This allows user to easily build an industrial grade, long-distance communication system using standard PC hardware. The module provides 2500 VDC of optical isolation allowing you to separate and protect critical segments of the system from the rest of the RS-485 network.

The ICP DAS tM-7561 is a cost-effective USB to RS-485 converter. Connecting the tM-7561 to a PC, the user get one RS-485 port that allows the user to access RS-485 devices through the USB interface. Like the I-7520, the tM-7561 contains “Self-Tuner” chip auto-tunes the baud rate and data format to the RS-485 network. The ICP DAS tM-7561 module derives its power from the USB port and doesn’t need external power adapter.
