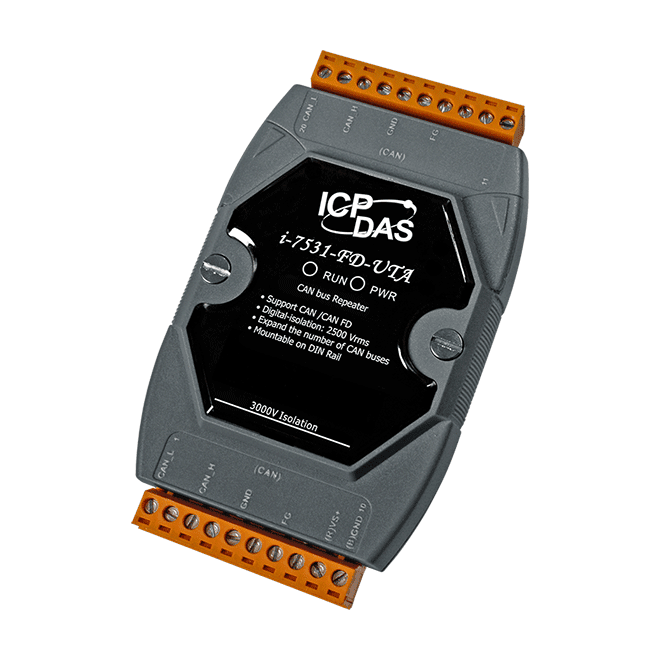

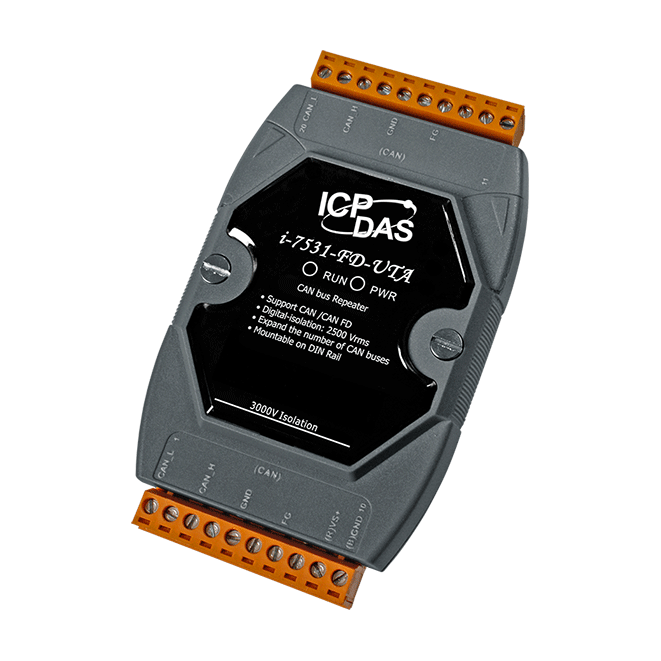

I-7531-FD-UTA-G Two-channel Isolated CAN / CAN FD Signal Repeater (-40~+75℃ Operating Temperature)

I-7531-FD-UTA-G Two-channel Isolated CAN / CAN FD Signal Repeater (-40~+75℃ Operating Temperature)

£189.50

Add to quote

Key Features

  • Supported CAN specification 2.0A/B and CAN FD
  • Fully compatible with the ISO 11898-2 standard
  • Detected CAN bus baud rate automatically, maximum support 8000 kbps
  • Wide Operating Temperature Range: -40 ~ +75°C

Description

The ICP DAS I-7531-FD-UTA is a CAN/CAN FD signal repeater, which can connect two or more CAN networks with the same baud rate, and has a wider operating temperature range than I-7531-FD.

Based on the signal repeat function of I-7531-FD-UTA, users can use different numbers of I-7531-FD-UTA to combine tree-shaped and star-shaped CAN network topology, and when there are too many devices on the CAN network, using I-7531-FD-UTA can increase the driving force of the CAN signal to drive more CAN devices.

In addition, the CAN side of the I-7531-FD-UTA has a digital isolation of 2500 Vrms, and the CAN side and the power side also provide 3000 V DC-DC isolation protection, which can effectively isolate the noise interference between CAN networks ,and achieve protection the purpose of a specific CAN network.

Applications

I-7531-FD-G_en
