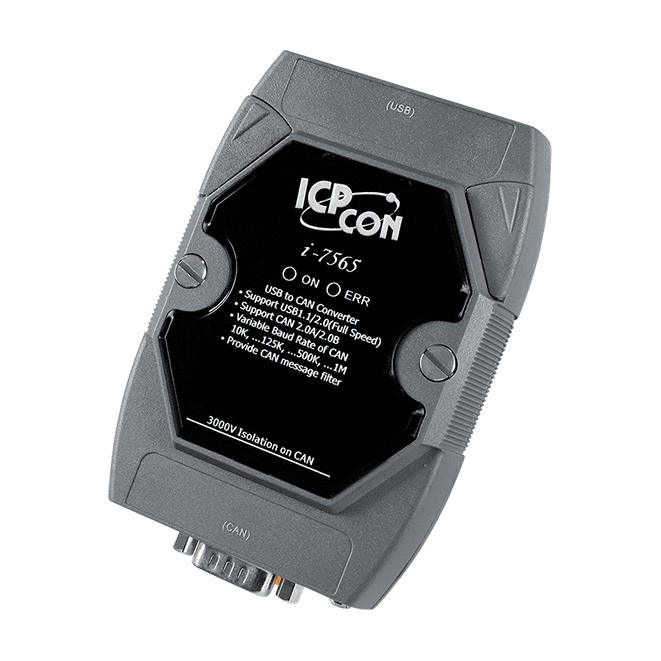

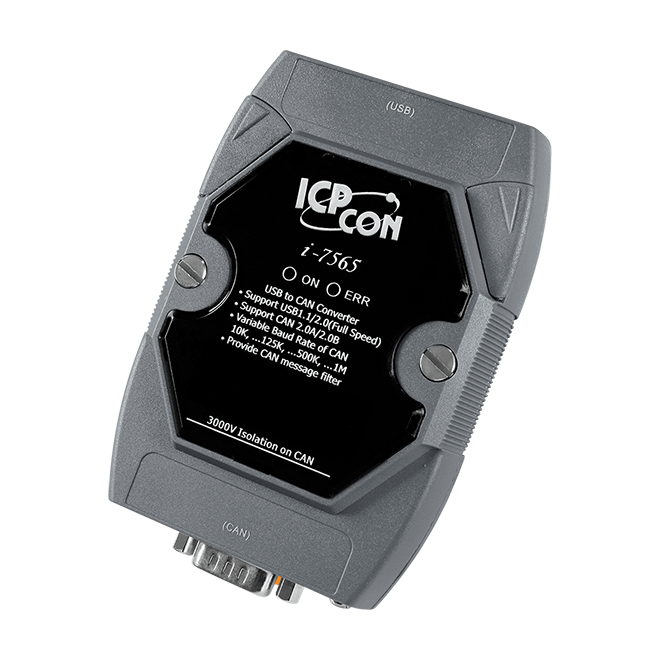

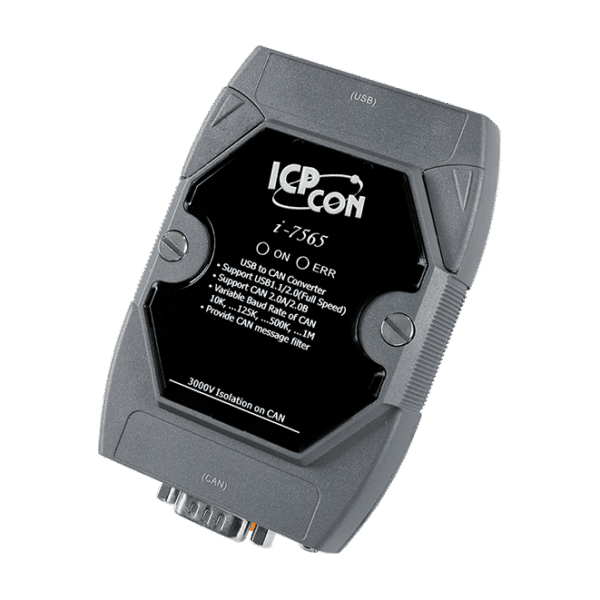

I-7565-G USB to CAN Converter


Key Features

• Fully compliant with USB 1.1/2.0(Full Speed)
• Fully compatible with the ISO 11898-2 standard
• Transmission speed up to 1M bps for CAN and 921.6K bps for USB
• Support both CAN 2.0A and CAN 2.0B
• Windows 98/ME/2000/XP/Vista/Win 7/Win 10 and Linux drivers support
• Supports a range of baud rates from 10 kbps ~ 1 Mbps


CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The ICP DAS I-7565 is a cost-efficient device for coupling the CAN bus to a PC (MS-Windows 98, Me, 2000, XP, Win 7 and Win 10 operating systems) via the standard USB interface. When a connection is established between the ICP DAS I-7565 device and the PC, the PC automatically loads the relevant device driver (i.e. hot plug & play).
The CAN port of I-7565 is isolated with 3000V isolation which protects the local devices from the damage signal coming from CAN network. The ICP DAS I-7565 is equipped with two indicators, i.e. a power indicator which enables the user to check if the unit is on standby or transmitting/receiving messages, and the error indicator comes on when there is error on the unit.
