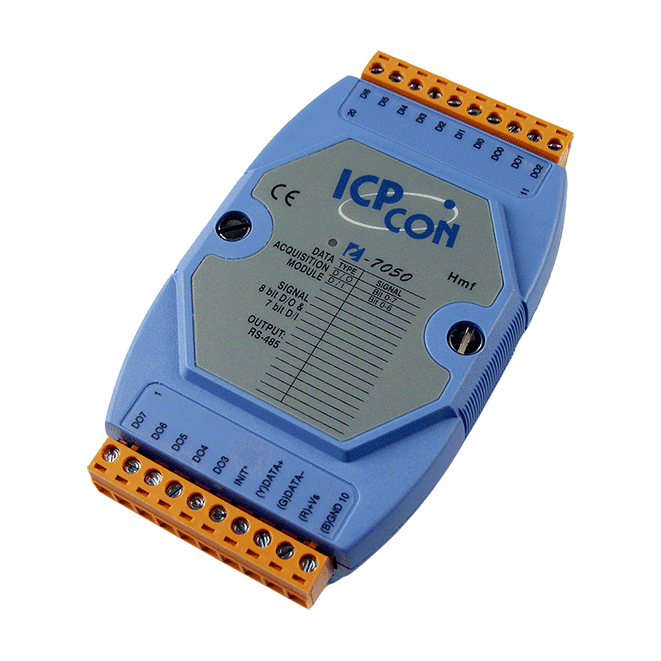

I-7050 7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module

Name: I-7050 7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module
Brand: simple
Availability: InStock

£90.00

Add to quote

Key Features

7 Digital Inputs and 8 Digital Outputs
Sink-type Open Collector Output
Digital Input Channels Can be Used as 16-bit Counters
Configurable Power-on Value and Safe Value Settings
Built-in Dual Watchdog

Description
Datasheets

Description

The ICP DAS I-7050/I-7050D module offers 7 channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050(D) supports sink- or source-type input, also sink-type open collector output. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values.

The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment

I-7050(D)_I-7050A(D)_M-7050(D)_en (1)
