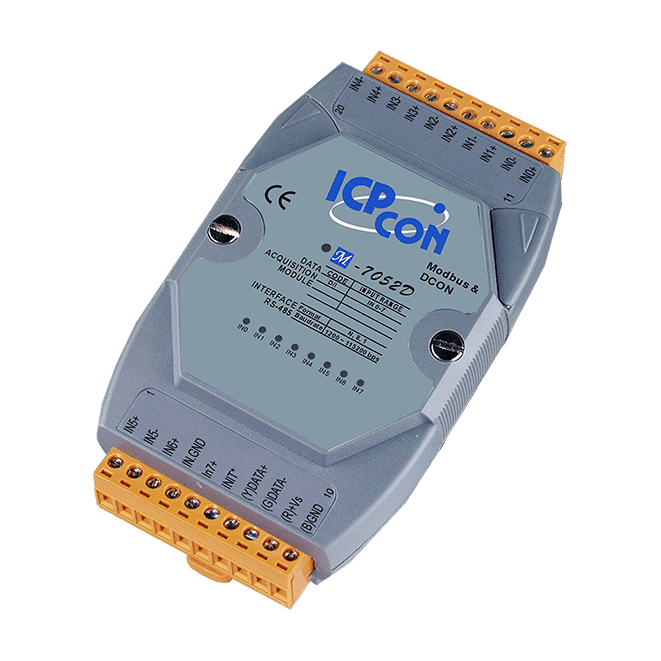

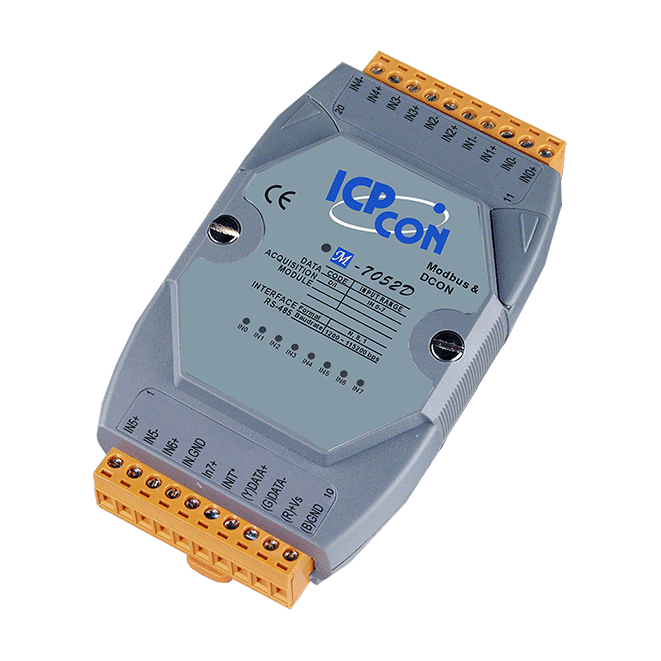

M-7052D 8-ch Isolated (Wet) DI Module with LED Display


Key Features

• Differential Digital Inputs
• Sink- or Source-type Input
• 4 kV ESD Protection
• 5000 Vrms Isolation Voltage
• All Channels Can Be Used As 16-bit Counters
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7052D offers 6 fully independent channels and 2 common ground channels for digital input. The differential inputs feature channel-to-isolation. In addition, you can choose either sink- or source-type input via wire connections. All channels are able to be used as 16-bit has 8 LED indicators for DI channel status monitoring. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard.

The M-7052D has the same hardware specifications as the ICP DAS I-7052, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
