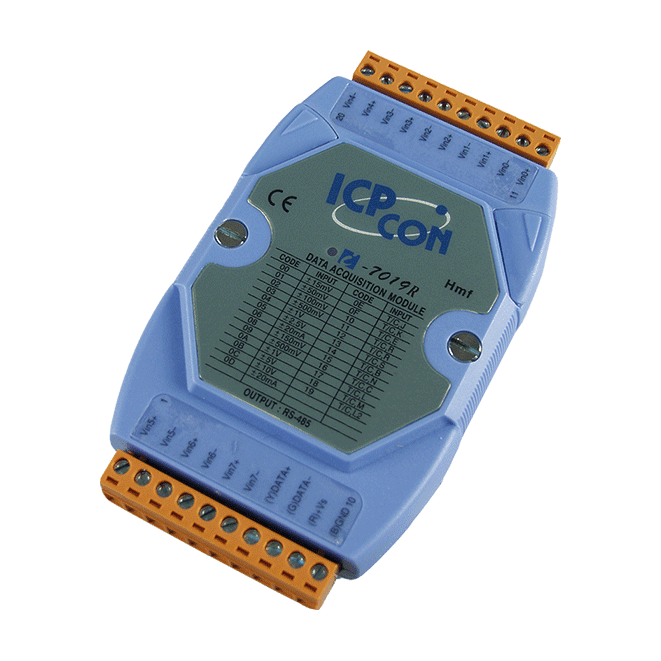

I-7019R 8-ch Universal AI Module with High Voltage Protection

Description

The ICP DAS I-7019R is an Analog Input module that includes 8 differential Analog Input channels. Voltage, current or thermocouple input can be selected for all Analog Input channels via a jumper and each channel can be configured for an individual range.

The voltage input range can be from ±15 mV to 10 V, the current input range can be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L, M,LDIN43710 can be used for the thermocouple input. Up to 8 different Analog Input types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided.

The module also features per-channel open wire detection for the thermocouple and +4 to +20 mA input types, and provides 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7019R supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7019R.
