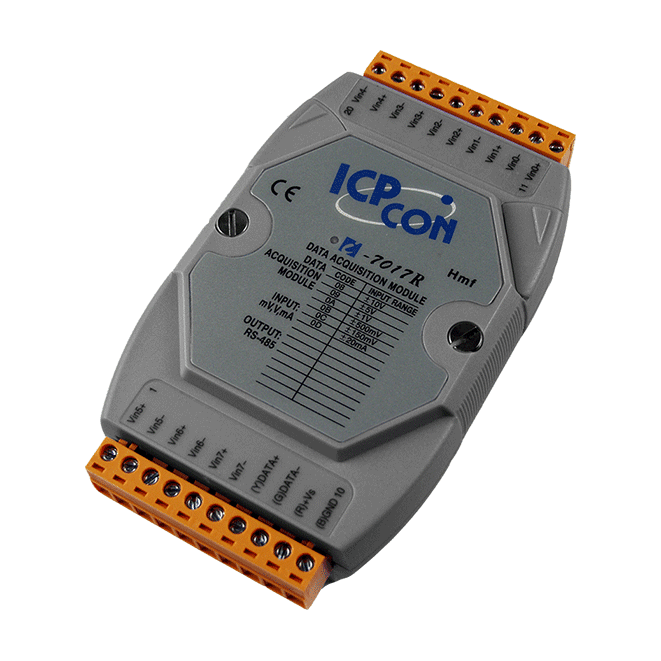

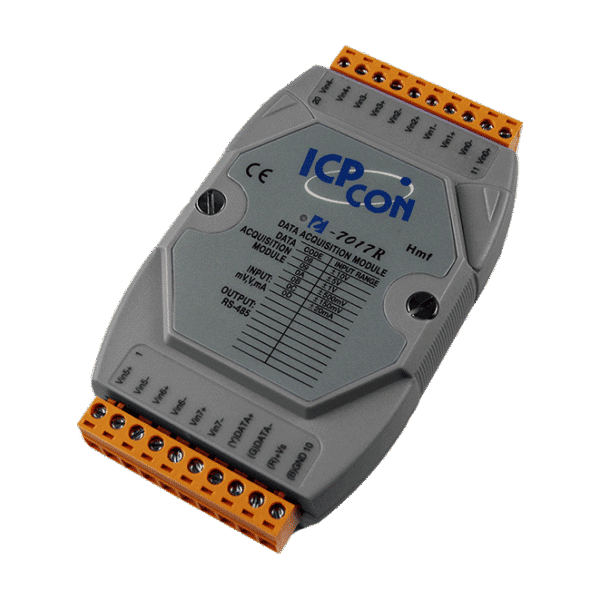

I-7017R-G 8-ch AI Module with High Voltage Protection


Key Features

  • 8 Differential, or 6 Differential and 2 Single-ended Analog Inputs
  • Voltage and Current Inputs
  • High Resolution: 16-bit
  • Open Wire Detection for 4 ~ 20 mA
  • Built-in Dual Watchdog


The ICP DAS I-7017R is analog input module that provide either 8 differential input channels, or 6 differential input channels and 2 single ended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection.

The I-7017R is an upgraded version of the I-7017, with the only difference being that the I-7017R is much more suitable for critically harsh environments. The sampling rate of the I-7017R is adjustable, meaning that either fast mode or normal mode can be selected. The I-7017R also has 4 kV ESD protection as well as 3000 VDC intra-module isolation.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
