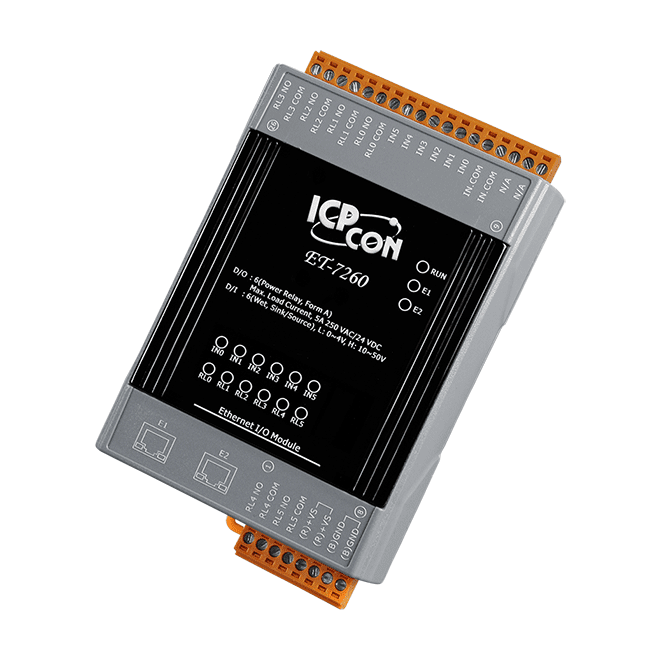

ET-7260 Ethernet I/O Module with 2-port Ethernet Switch, 6-ch Power Relay & 6-ch DI

£184.58

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • DI/Counter: 6 Channels
    • Power Relay: 6 Channels

Description

The ICP DAS ET-7260 provides 6 wet contact digital input channels and 6 form A electro-mechanical relays. It features optical isolation for 3000 VDC of transient over-voltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are programmable. Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.
