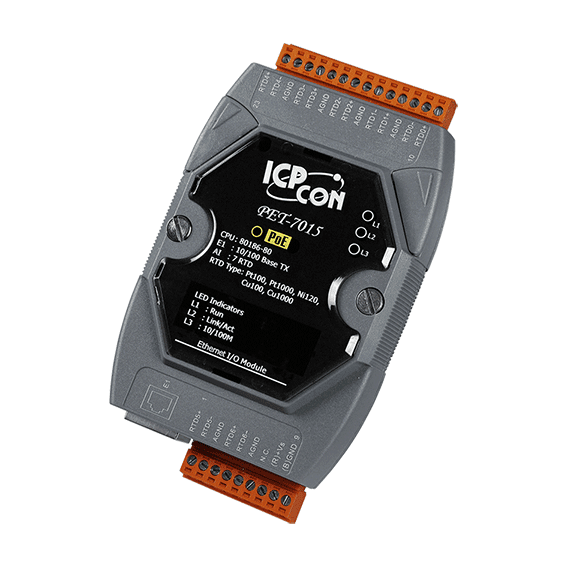

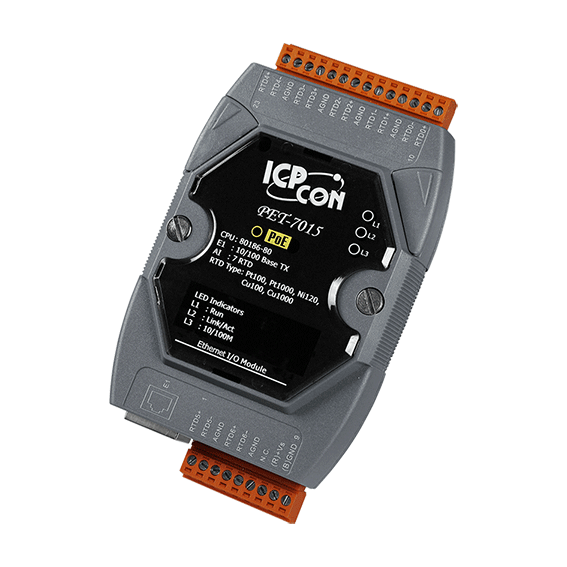

PET-7015 7-Ch RTD Input Module with 3-wire RTD Lead resistance elimination PoE Module


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • RTD Input: 7 Channels


The ICP DAS PET-7015 is specifically designed for long-distance RTD measurement. It features automatic compensation for three-wire RTD regardless of the length of wires and provides open wire detection for RTD measurement. The ICP DAS PET-7015 offers 7 channels, each of which could be connected with different kinds of RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000).

The ICP DAS PET-7015 is fully RoHS-compliant and has qualification for 4 kV ESD protection and 2500 VDC intra-module isolation which makes the PET-7015 very reliable for RTD measurement applications. The ICP DAS PET-7015 Ethernet IO module supports Modbus TCP protocol for seamless integration with SCADA software.
