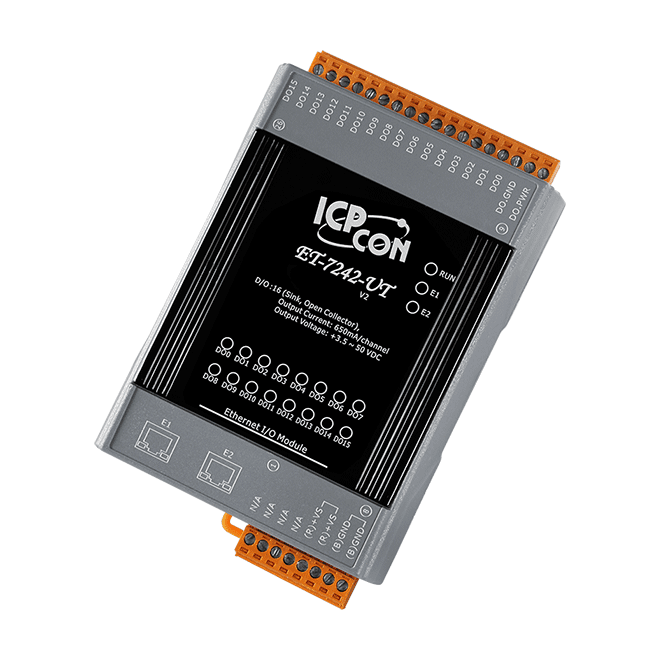

ET-7242-UT Ethernet I/O Module with 2-port Ethernet Switch, 16-ch DO with wide operating temperature range


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -40 ~ +75°C
  • Built-in I/O
    • DO: 16 Channels



The ICP DAS ET-7242-UT provides 16 sink-type digital output channels with wide operating temperature of -40 to +75°C. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation.

The power-on value and safe value of digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7242-UT to the RM series relay module to switch inductive loads.
