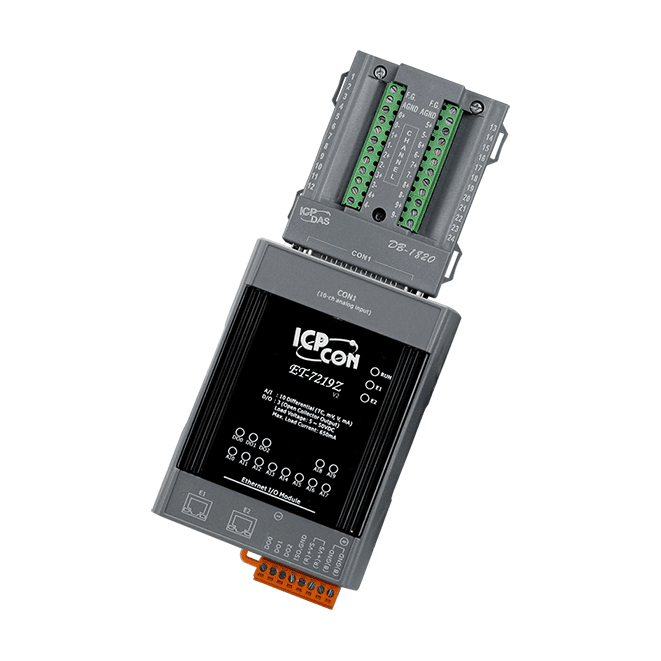

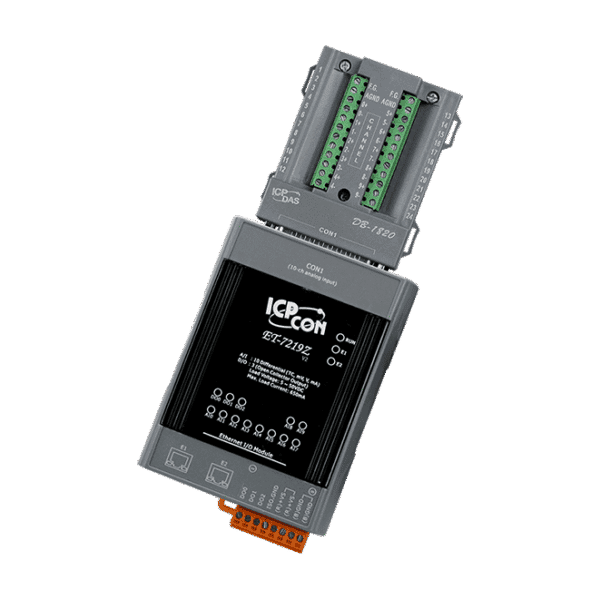

ET-7219Z/S Ethernet I/O Module with 2-port Ethernet Switch with 10-ch universal AI, 3-ch DO
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP & Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 3 Channels
The ICP DAS ET-7219Z is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported.
The ET-7219Z has ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and over-load protection.
