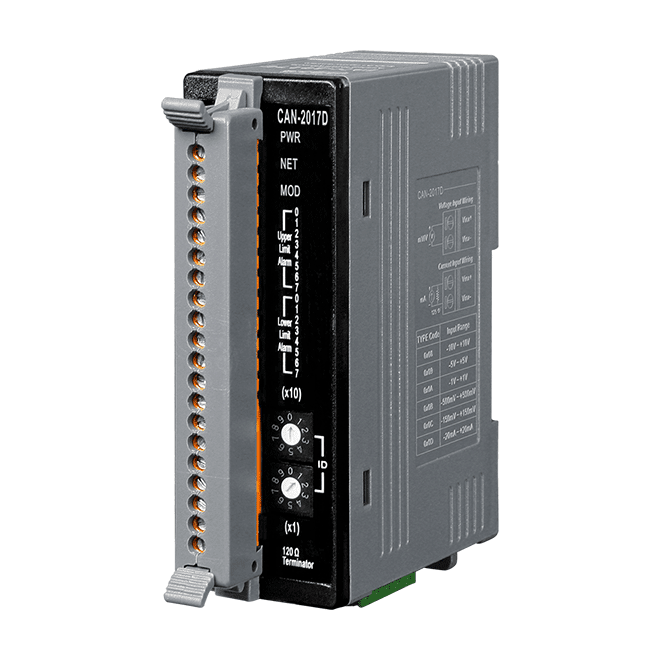

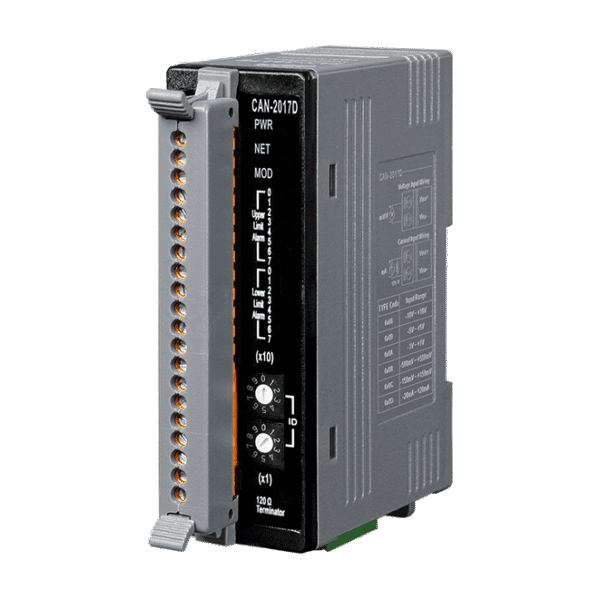

CAN-2017D DeviceNet Slave Module with 8-channel Analog Input

£279.00

Add to quote

Key Features

  • DeviceNet general I/O slave devices
  • Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface

CE UKCA FCC RoHS WEEE

Description

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment’s control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The ICP DAS CAN-2017D follows DeviceNet specification Volume I/II, Release 2.0 and the user can access the analog input status and set the configuration via DeviceNet EDS file. The CAN-2017D has 8-channel analog input and it can be used to various applications.

Applications

The ICP DAS CAN-2000D series works seamlessly with the following DeviceNet masters or gateways:-

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

CAN-2017D_en
