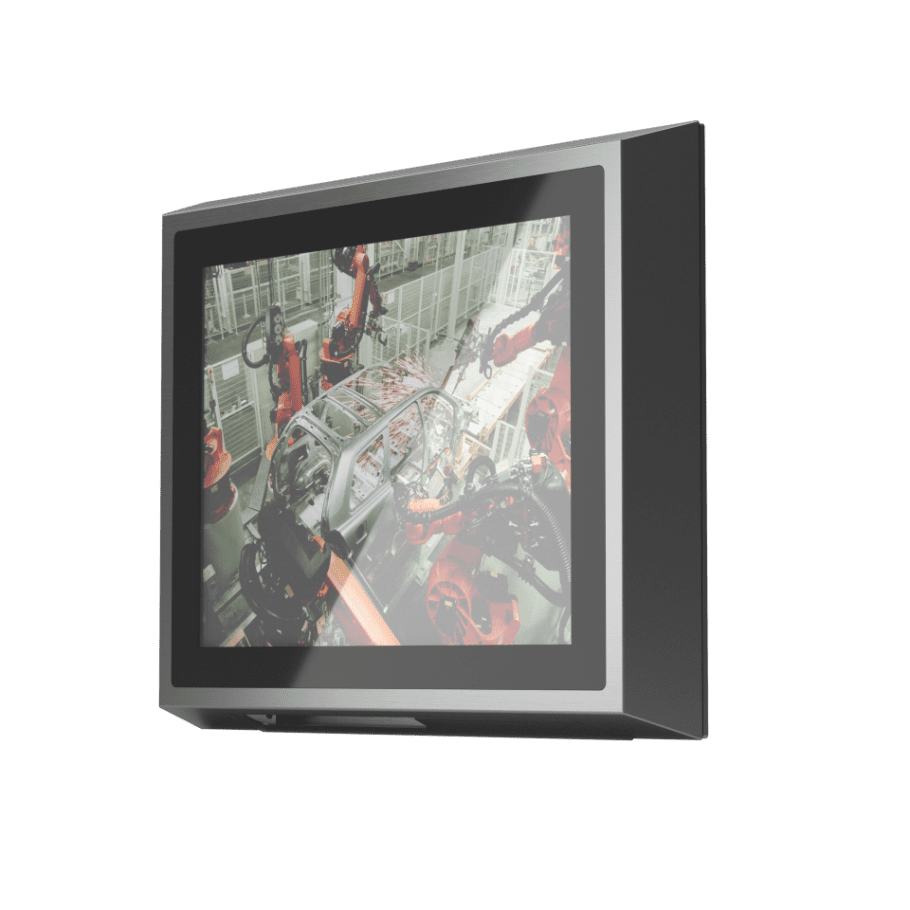

WPPC-H1580T/T001 15” TFT LCD, Resistive Touch, Industrial Waterproof Panel PC with Intel ®Celeron J1900 CPU

Add to quote

Key Features

  • Intel® Baytrail Celeron J1900 2.0-2.42GCPU
  • 1-Ch DDR3L 1333MHZ SODIMM, Up to8GB
  • SUS304 grade stainless steel enclosure
  • 3.0mm 5052 aluminum rear cover
  • Full Flat bezel design, fanless
  • Totally IP65/IP66(except for IO interface )
  • Support for standard VESA 100*100 mounting
  • 15” LED TFT LCD, Resistive touch
  • 1*HDMI, 1*VGA,2*GbE LAN,2*COM, 1*USB3.0, 3*USB2.0
  • 1*Opt. ANT, support4G LTE/WiFi/BT4.0
  • 1*MiniPCIe(PCIe+USB,w/SIM)
  • 1*Simple-swap2.5”SATA bay , 1*mSATA
  • DC 9~36Vpower input

Description

The JHCTECH WPPC-H1580T is a rugged, super-reliable, fanless embedded waterproof panel PC. The front panel is made of SUS304 stainless steel and the back cover is made of a 3.0mm 5052 aluminium alloy, which can meet both CPU thermal dissipation and VESA mounting. It is powered by Intel® Celeron J1900 CPU,1-Ch DDR3L 1333 MHz SODIMM, and up to 8GB.

The WPPC-H1580T  supports 15-inch 1280*1024@60Hz TFT LCD, Resistive touch and adopts a full flat bezel design. In addition to the IO interface, the waterproof grade of this PC can reach IP65/IP66. It has super waterproof, solid and reliable, high performance, multi-IO, multi-extension, and has a wide range of applications. Suitable for wet, cold and harsh environments.



WPPC-H1580T
