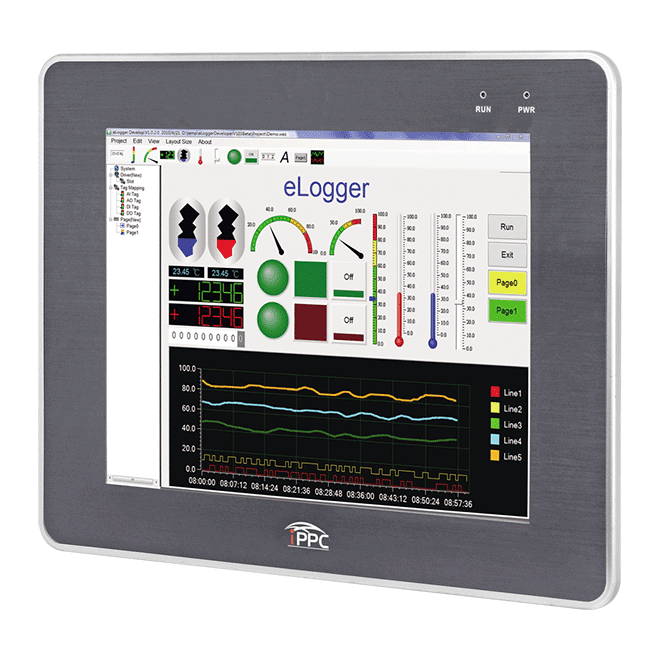

iPPC-6831-WES7 15″ Panel PC with Atom E3845 CPU, WES7 & 3 I/O Slots

Key Features

• Windows Embedded Standard 7 SP1 x64 (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• 32 GB SSD
• 3 I/O Expansion Slots
• 15″ LCD with Touch Panel
• NEMA 4/IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +60°C


The ICP DAS iPPC-6831-WES7 series product is WES7 based Panel PC that combines computing, I/O, and operator interface into a single unit, and provides a perfect solution for integrating HMI, data acquisition and control in an individual PAC.

This panel PC is equipped with an Intel Atom E3845 CPU, three I/O expansion slots, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot.

The local I/O slots are available for using our I-8K or I-87K series I/O modules and remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules. The ICP DAS iPPC-6831-WES7 is designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust.

The ICP DAS iPPC-6831 is also designed to operate over a wide -20°C to 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
