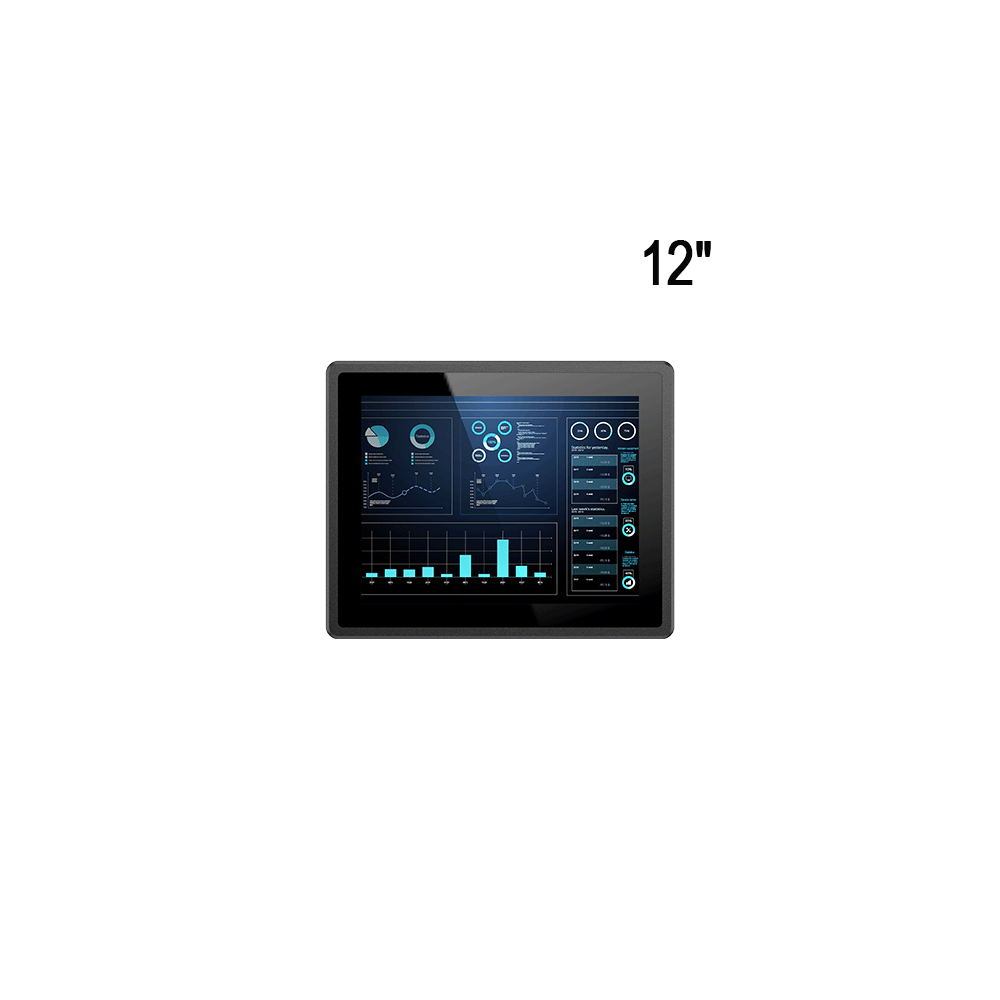

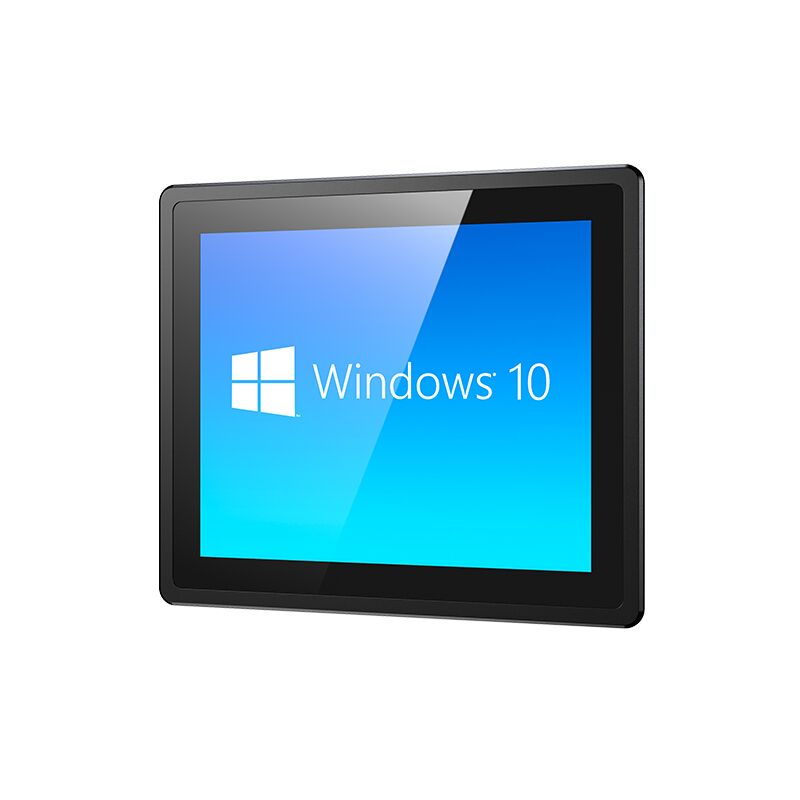

DPC-5122S 12.1″ Industrial Panel PC with LED Intel®Core i5-4300U


Key Features

• 12.1″ LED backlight LCD and Resistive touch panel
• Fanless design, Front Panel meet IP65
• Embedded Intel®Core i5-4300U processor
• 2 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
• Panel and VESA mounting
• Rich I/O expansion ability (RS-232/RS-485)
• Operating Temperature: -10 ~ +50 °C


The Darveen DPC-5122S is a fanless Industrial Panel PC that provides a perfect solution for integrating HMI, data acquisition and control for a variety of industrial automation applications. The DPC-5122S is compatible with Windows 7/8.1/10/LINUX operating system running on Intel®Core i5-4300U CPU, comes with 12.1″ LCD monitor and a variety of connective interfaces including dual Gigabit Ethernet, USB port, RS-232, RS-422 and RS-485. The remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules.

The Darveen DPC-5122S is designed for panel mount installation with NEMA 4/IP65-compliant front bezels to withstand sprayed water, humidity and extreme dust and operating over a wide temperature range of -10 °C to 50 °C.
