WGS-814HP Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Switch with 4-port PoE+
£169.00
Key Features
- 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- IP30 metal case
- DIN-rail and wall-mount designs
- 48 to 54V DC input range
- -20 to 60 degrees C operating temperature
Description
Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-814HP is innovative, wall-mounted industrial 8-port Gigabit Ethernet Switches with 4-port 802.3at Power over Ethernet Plus injector. They come in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 60 watts, ultra networking speed and operating temperature ranging from -20 to 60 degrees C, the WGS-814HP is ideal solutions to meet the demand for sufficient PoE power for the following network applications such as Building/Home automation network, Internet of things (IoT) and IP surveillance and wireless
The PLANET WGS-814HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.
In the Extend operation mode, the WGS-814HP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-814HP provides an additional solution for 802.3at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the extend operation mode.

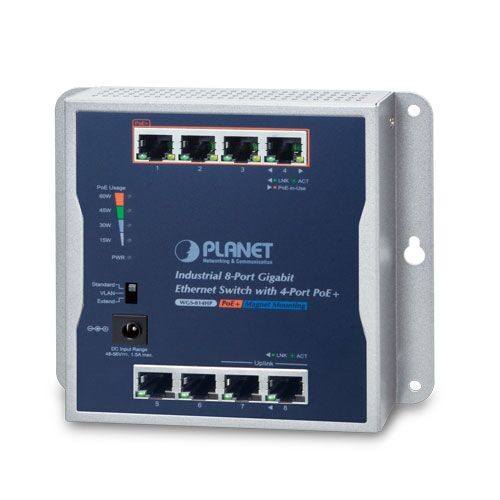

To facilitate auto power management, the WGS-814HP implements Power Budget Control function that helps to prevent power budget overloading. Moreover, the WGS-814HP helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the WGS-814HP has four LEDs indicating 15W, 30W, 45W and 60W of power usage.
Carrying both Ethernet data and power simultaneously, the WGS-814HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps users to utilize just one Ethernet cable to install and deploy IP camera, wireless AP or VoIP phone more efficiently and cost-effectively.
