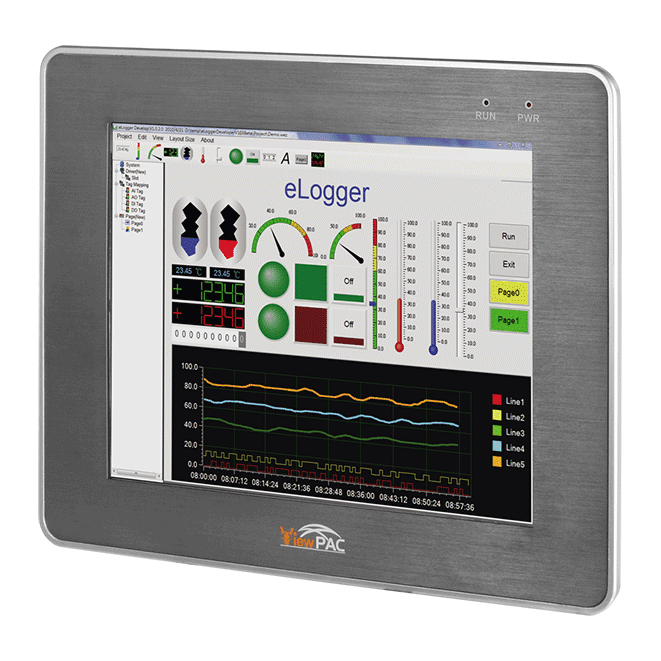

VP-4231-CE7 10.4″ Standard ViewPAC with Cortex-A8 CPU, WinCE 7.0 & 3 I/O Slots

£1,150.76

Compared with traditional IPC + PLC solutions, ICP DAS ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• Cortex-A8, 1 GHz CPU
• 10.”4 TFT LCD with Touch Panel
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
• Various Communication Interfaces
• Rubber Keypad with 6 Keys
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 3 x I/O Expansion Slots
• IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +70 °C

CE FCC RoHS WEEE

Description

The ICP DAS VP-4231-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules.

Designed to operate over a wide -10 °C to 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and highly reliable operating system. CE7 delivers rich user experiences and a unique connection to Windows PCs, servers, services, and devices.

The ICP DAS ViewPAC series offer a broad range of communication interfaces such as Ethernet, RS-232/485, USB, CAN BUS, HART, PROFIBUS and GSM/GPRS/GPS for I/O expansion and communicating with other external devices.

vp-x231-ce7_data sheet_envp-ce5_data sheet_en
