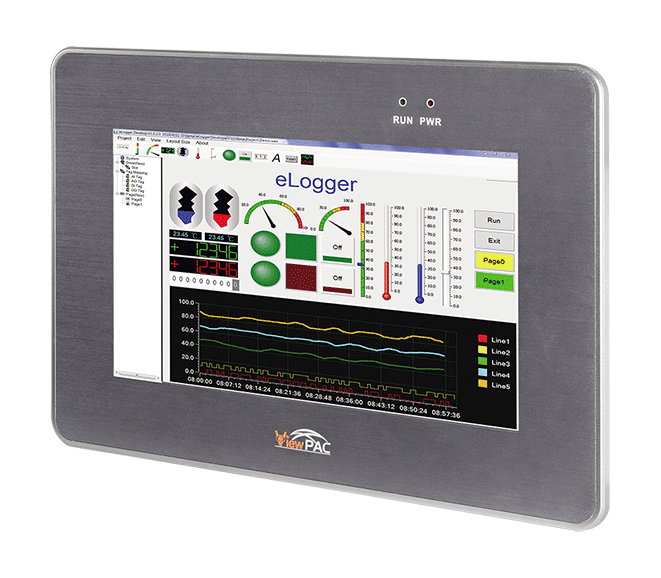

VP-2201-CE7 7″ Standard ViewPAC with Cortex-A8 CPU and WinCE 7.0

£635.93

Compared with traditional IPC + PLC solutions, ICP DAS ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• Cortex-A8, 1 GHz CPU
• 7″ TFT LCD with Touch Panel
• Windows CE 7.0
• Rich software support
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB EEPROM and 128 KB MRAM for data retention
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 2 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Built-In Real-time clock
• IP65 Compliant Front Panel
• Operating Temperature: -10 ~ +60 °C
CE FCC RoHS WEEE

Description

The ICP DAS ViewPAC series are programmable automation controllers with built-in 3.5″/5.7″/7″/10.4″ touch screen display and three rear I/O slots that combines HMI, data acquisition and control functions in single system that makes these controllers suitable for complex process control, manufacturing management, environment monitoring and industrial automation applications.

This series has three optional CPU types (PXA270, Cortex-A8 & 80186), four operating system options (WinCE 5.0, WinCE 7.0, Linux & MiniOS7), and arrays of software development tools including ISaGRAF – SoftLogic, InduSoft – SCADA, C#, Embedded Visual C++ and Visual Studio.NET.

The ICP DAS VP-2201-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Cortex-A8 CPU, TFT LCD and a variety of connectives including dual a Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and highly reliable operating system. CE7 delivers rich user experiences and a unique connection to Windows PCs, servers, services, and devices.

vp-x201-ce7_data sheet_en
