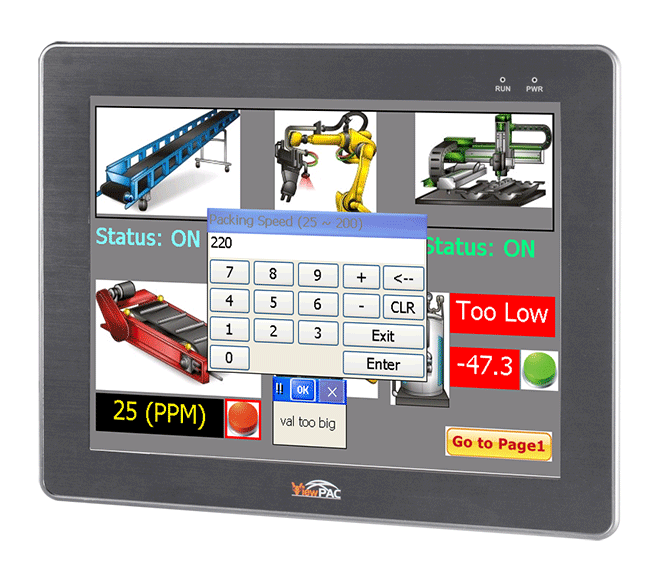

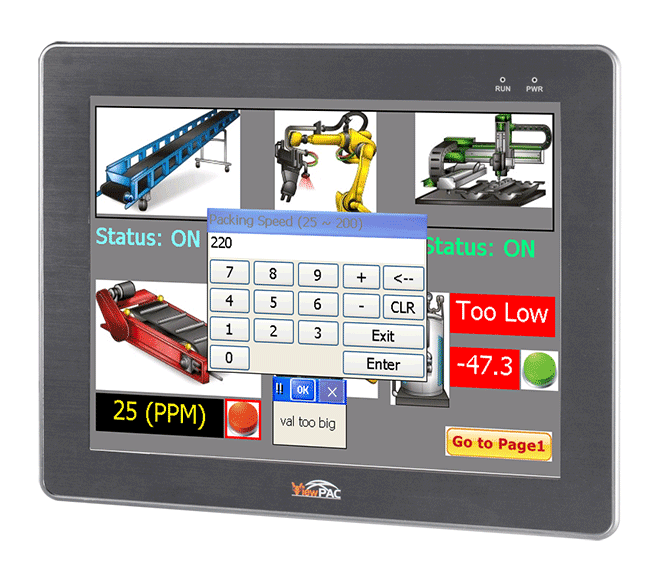

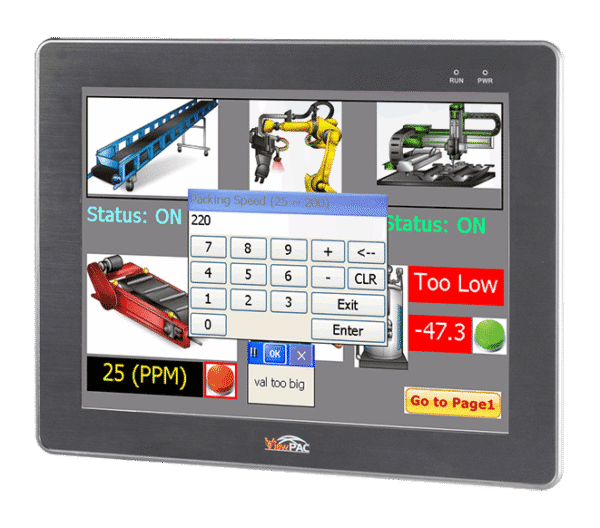

VP-6238-CE7 15″ Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0 & 3 I/O Slots


Compared with traditional IPC + PLC solutions, ICP DAS ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• 15″ TFT LCD
• Cortex-A8 CPU (32-bit & 1 GHz)
• Windows CE.NET 7.0 Inside
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 3 Slots for High Profile I/O Modules
• IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Audio with Microphone-In and Earphone-Out
• Operating Temperature: -20 °C ~ +70 °C



The Win-GRAF ViewPAC with I/O slot Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS.

Each PAC is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7”/10.4”/15” TFT LCD with a rubber keypad.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software “eLogger” to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application’s design is more convenient and practical.

The ICP DAS ViewPAC series offer a broad range of communication interfaces such as Ethernet, RS-232/485, USB, CAN BUS, HART, PROFIBUS and GSM/GPRS/GPS for I/O expansion and communicating with other external devices.
