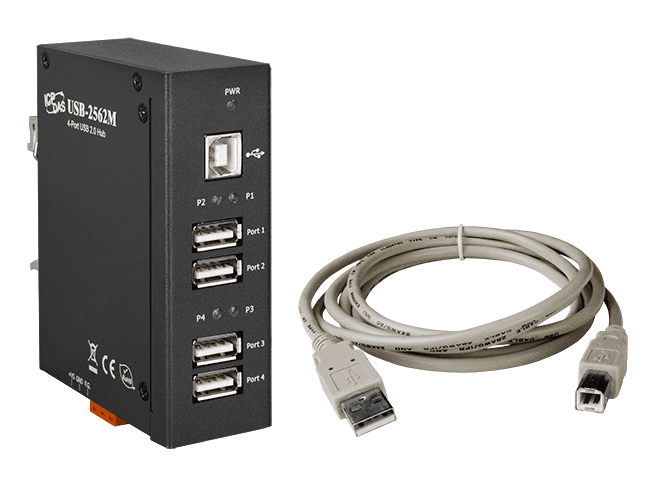

USB-2562M 4-port Industrial USB 2.0 Hub (with metal casing)


Key Features

• Compliant with USB Specification Revision 2.0
• Built-in Renesas uPD720115 USB 2.0 Hub Controller
• Provides 4 Downstream Ports
• Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
• Only Supports Self-powered Mode +10 ~ +30 VDC Power Input
• Supports Downstream Port Status with LED


The ICP DAS USB-2562M provides an easy USB plug-and-play operation for all kinds of industrial automation applications. Compared with the traditional PC-based card like PCI, and ISA cards, users can achieve data transmission easier and quicker via USB-2562M USB hub.

The ICP DAS USB-2562M allows user to add multiple high performance USB 2.0 peripheral devices to a computer. This USB hub supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate. The USB-2562M only supports self-powered mode (drawing power from an external power supply). External powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.

Users can configure and test USB-2562M directly and easily without any coding via the ICP DAS USB I/O utility. A user-friendly API library is available for users to quickly develop their (VB/C++/C#.NET/VB.NET) applications.
