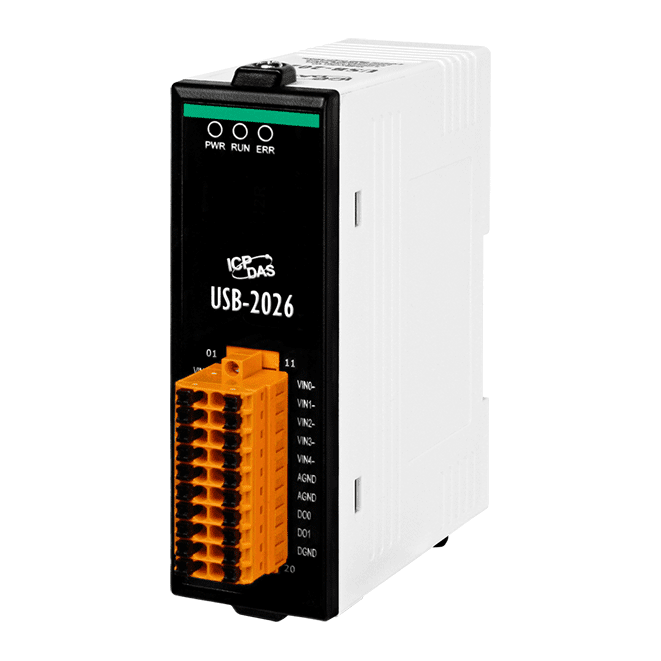

USB-2026 USB I/O Module with 5-ch AI, 2-ch AO, 2-ch DI & 2-ch DO


Key Features

• Multi-function (5 AI, 2 AO, 2DI & 2 DO)
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Over-voltage Protection for Voltage Input
• 4kV ESD protection
• Wide Operating Temperature Range
• 3000 VDC Intra-Module Isolation
• USB 2.0 Full-Speed (12 Mbps)
• USB Bus Powered
• Lockable USB cable
• Driver Free


The ICP DAS USB-2026 provides an easy USB plug-and-play operation with accurate measurement for all kinds of industrial automation applications. Compared with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker via USB-2026 I/O module.

The ICP DAS USB-2026 is a multi-function I/O module with 5 analog input channels, 2 analog output channels, 2 digital input channels and 2 digital output channels with USB 2.0 full-speed. This unit is equipped with 10kS/s data acquisition sampling speed and programmable analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0-+20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 -+20 mA or +4 – +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high over-voltage protection of 240 Vrms.

Users can configure and test USB-2026 directly and easily without any coding via the ICP DAS USB I/O utility. A user-friendly API library is available for users to quickly develop their applications.
