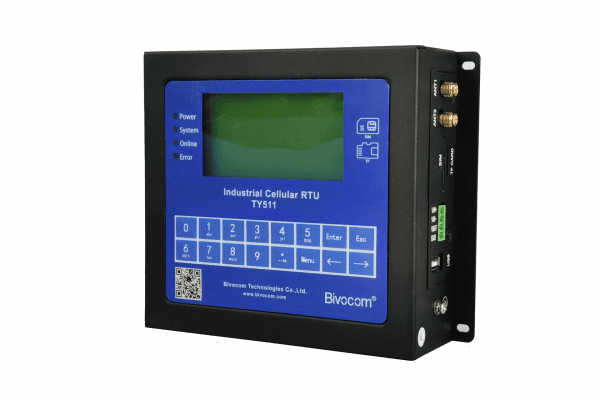

TY511-LQE Industrial 4G LTE RTU with LCD display, 2-RS-232, 2-RS-485, 8-DI, 8-DO, 8- ADC, 2-Pulse & 3-Power output

£323.50

Add to quote

Features

  • IP30 LCD display
  • Equipped with 2-RS232, 2-RS485, 8-DI, 8-DO & 8-ADC
  • Equipped with 2-Pulse, 3-Power output & 1-SD slot
  • Support 4G Network
  • Supports up to 16MB data storage & additional SD card data storage(Up to 16GB)
  • Support Modbus TCP/RTU, MQTT & TCP/UDP protocols
  • SMS alarm and AT command
  • Wide operating voltage: 5-35VDC
  • Operating temperature: -35°C~+75°C

Description

The Bivocom TY511 RTU is an industrial cellular remote telemetry unit that adopts high-powered industrial 32-bits CPU with multi-layer software detection and hardware protection mechanism to ensure reliability and stability of the device.

The TY511 supports 4G/3G/2G cellular network for real time data acquisition, storage, control, alarm and transmission, as well as security of data transmission.

The Bivocom TY511 series has rich interfaces such as RS-232, RS-485, I/O functions which makes it an ideal solution for remote monitoring and control applications including hydrology, water resources, water pollution, water treatment, reservoir dam, mountain flood disaster, geological disaster, meteorology, environmental protection and new energy resources.

DS_TY511_V2.2 (1)
