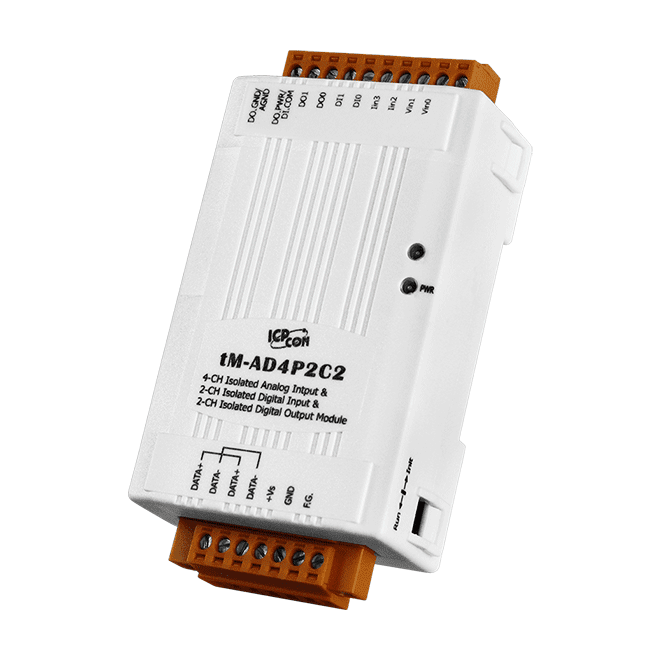

tM-AD4P2C2 4-channel Isolated AI, 2-channel Isolated DI & 2-channel Isolated DO Module


Key Features

  • Multifunction (4 AI, 2 DI and 2 DO)
  • 2 Voltage Input Channels and 2 Current Input Channels
  • 2-channel DI Can be Used as 16-bit Counters
  • 2-channel DO Can be Used as Voltage Input Limit Alarms
  • Adjustable Sampling Rate
  • Configurable Power-on Value and Safe Value Settings
  • Dual Watchdog


The ICP DAS tM-AD4P2C2 is a multifunction module that includes 4 analog input channels, 2 digital input channels, and 2 digital output channels. The module provides a programmable analog input range that includes 2 voltage input channels (±1 V, ±2.5 V, ±5 V, and ±10 V) and 2 current input channels (±20 mA, 0 ~ 20 mA, and 4 ~ 20 mA).

The analog inputs provide high overvoltage protection of 120 VDC and an adjustable sampling rate. The module supports sink-type digital output with short circuit protection and the digital outputs can be used as voltage input limit alarms.

The digital inputs are source-type and all digital input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 2500 VDC intra-module isolation are also provided.

The tM-AD4P2C2 supports the DCON, Modbus RTU, and Modbus ASCII protocols, which can be configured via software.


  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Control Systems
  • Food and Beverage Systems
  • Semiconductor Fabrication
