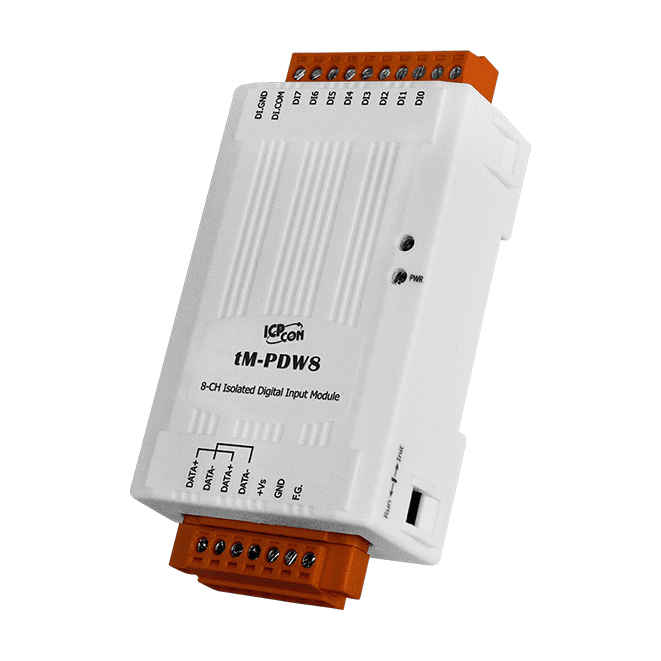

tM-PDW8 8-channel Isolation Digital Input Module


Key Features

• Dry Contact Source-type Digital Inputs
• Wet Contact Source- or Sink-type Digital Inputs
• Photo-coupler Isolation
• Dry Contact and Wet Contact Selectable via Wire Connections
• All Channels Can Be Used As 16-bit Counters
• Dual Watchdog
• Cost-effective


The ICP DAS tM-P8 offers 8 channels for digital input, each of which features photo-coupler isolation. In addition, digital input can be either sink or source-type using wire connections and all channels can be used as 16-bit counters.

The tM-P8 is also equipped 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The ICP DAS tM-PDW8 offers 8 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters.
