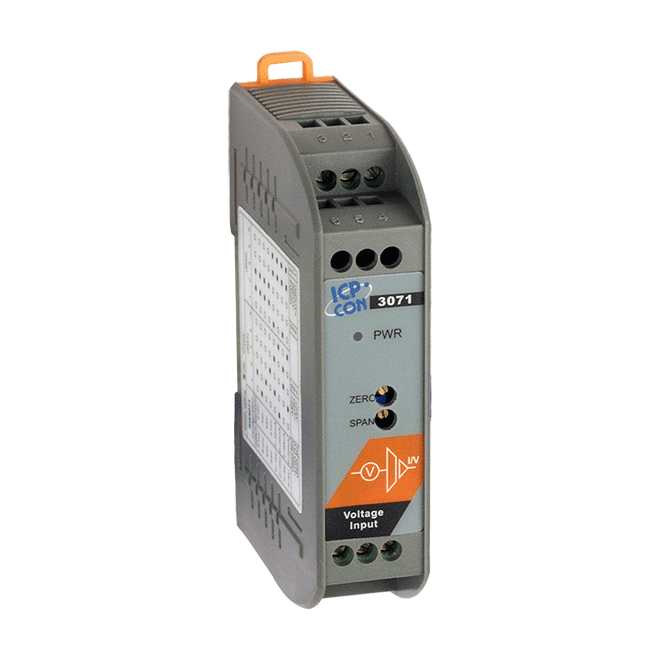

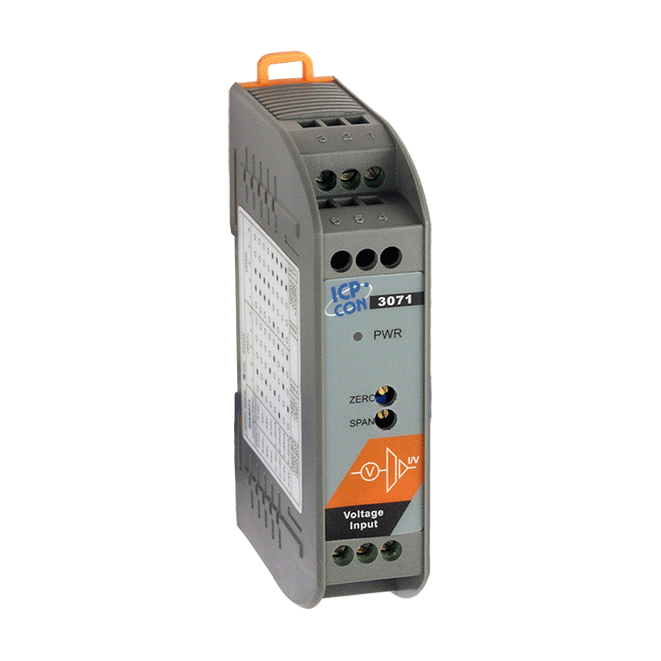

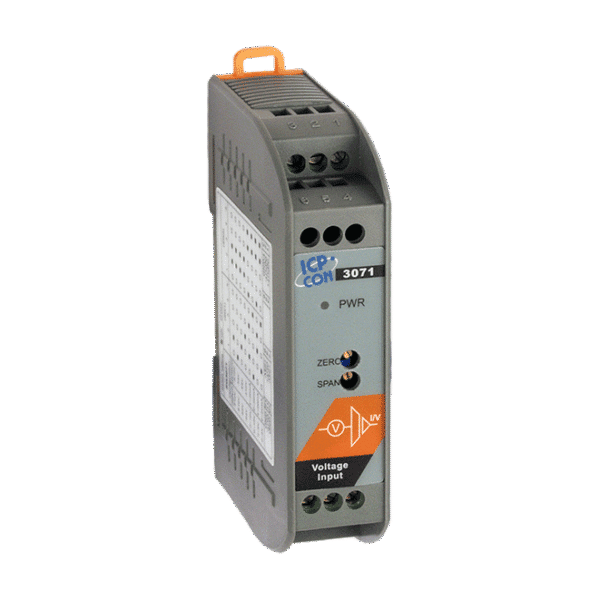

SG-3071 DC Voltage Input Signal Conditioner


Key Features

• Three-way isolation: 1000 Vdc
• Accuracy: ±0.1% of full range
• Easy to configure input/output range
• Three VRs for calibrating accuracy of the input/ output range
• Flexible DIN-rail


The ICP DAS SG-3071 is a voltage input to voltage or current output signal conditioning module. It can access either bipolar or uni-polar voltage input range. It has 1000 Vdc three-way isolation for input, output and power. It can change the input/output range via internal configuration switches. The ICP DAS SG-3071 has an LED display to show whether the SG-3071 is functioning correctly and has two VRs (Zero, Span) to calibrate accuracy of the input/output range.
The bandwidth of the SG-3071 is typically 1 KHz and it is easy to mount the ICP DAS SG-3071 on a standard DIN rail and operate in environments with wide temperature range.
