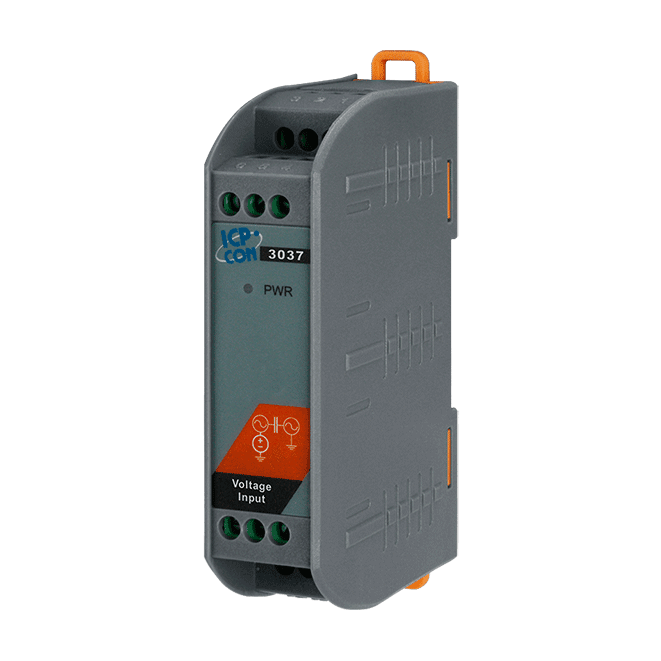

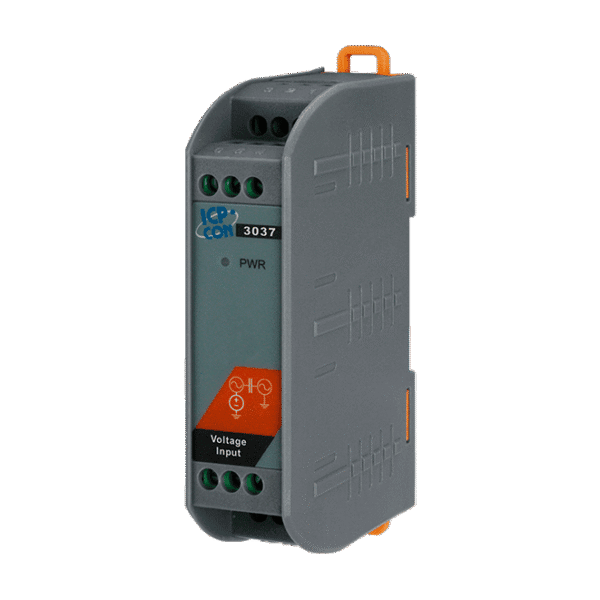

SG-3037-G Triaxial signal conditioner for voltage output type accelerometer

Name: SG-3037-G Triaxial signal conditioner for voltage output type accelerometer
Brand: simple
Availability: InStock

£99.00

Add to quote

Key Features

• 3-channel voltage input & output
• Input voltage range: 0-24V
• Provides signal bandwidth: 50 kHz
• Provides 24V power supply for the accelerometer
• Flexible DIN-rail

Description
Datasheets

Description

The ICP DAS SG-3037 is a triaxial signal conditioner module that is equipped with 3-channel analog inputs which can easily connect to the voltage output accelerometer, and convert the signal measured from the accelerometer into the analog voltage output.

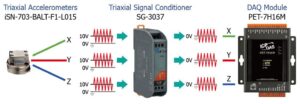

The PET-7H16M module collects the vibration data through ICP DAS SG-3037, and then send them via high-speed Ethernet to the data center for processing and analysis as shown below.

SG-3037_en
