SG-3081 DC Current Input Signal Conditioner


Key Features

• Three-way isolation: 1000 Vdc
• Accuracy: ±0.1% of full range
• Easy to configure input/output range
• Three VRs for calibrating accuracy of the input/ output range
• Flexible DIN-rail

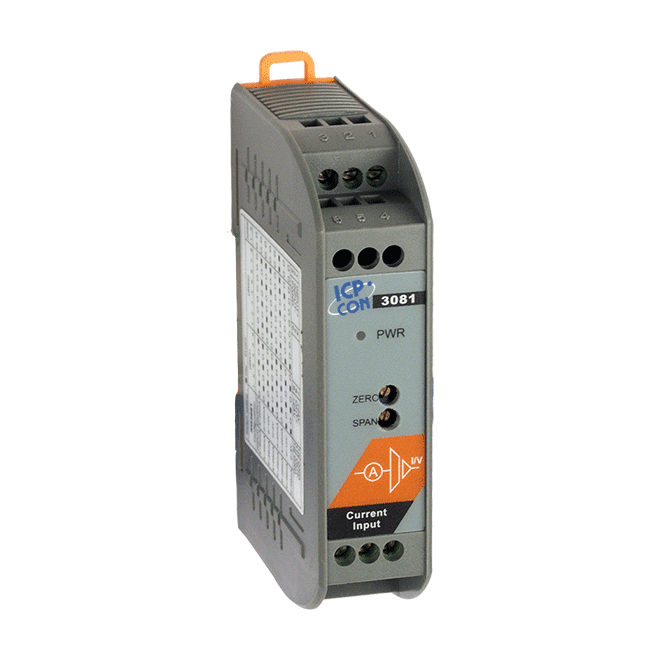

The ICP DAS SG-3081 is a current input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches.
The SG-3081 has an LED display to show whether the ICP DAS SG-3081 is functioning correctly and has two VRs (Zero, Span) to calibrate accuracy of the input/output range.
The bandwidth of the SG-3081 is typically 1 KHz and it is easy to mount the ICP DAS SG-3081 on a standard DIN rail and operate in environments with wide temperature range.
