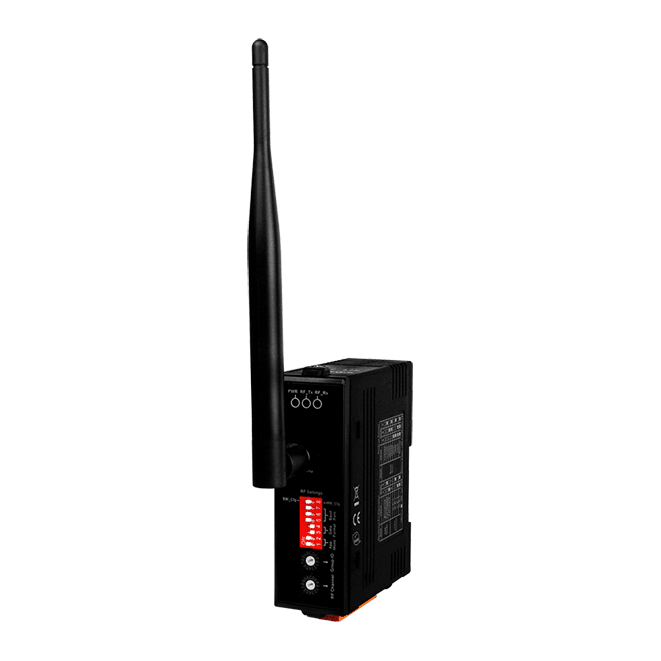

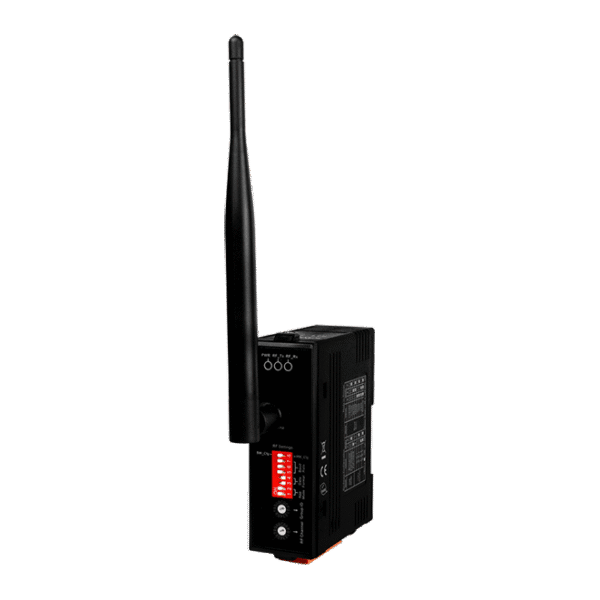

RFU-2400 2.4 GHz RF Wireless Modem with 1-port RS-232/485

£179.00

Add to quote

Features

  • ISM 2.4 GHz Operating Frequency
  • Direct Sequence Spread Spectrum (DSSS) RF technology
  • Wireless Transmission Range up to 700 m (Default)
  • RS-232/485 Interface Supported
  • Half-duplex communication up to 115200 bps
  • Full-duplex communication up to 57600 bps
  • Fully External Switch for the Hardware Configuration
  • Surge and ESD Protection
  • DIN-Rail Mountable
RED FCC RoHS WEEE

Description

The ICP DAS RFU-2400 is a 2.4 GHz radio frequency modem that provides RS-232 and RS-485 port interfaces. It is designed to act as a wireless bridge to convert signals between serial and wireless formats, and is great for applications when the physical wire deployment is inconvenient.
The RFU-2400 makes it easy to build a low-cost data acquisition and control application between a host and a range of remote sensors via wireless communication.
The RFU-2400 is a spread spectrum radio frequency (RF) modem based on the IEEE 802.15.4 standard. The IEEE 802.15.4 standard is operating on the ISM bands which uses a transmission frequency range between 2405 and 2480 MHz. A total of 16 channels are available and each with a channel separation of 5 MHz. Two operating modes are also supported, including Peer-to-Peer (P2P) mode, which allows full-duplex communication, and Broadcast mode, which allows half-duplex functionality in multi-point communication.

RFU-2400_datasheet_en
