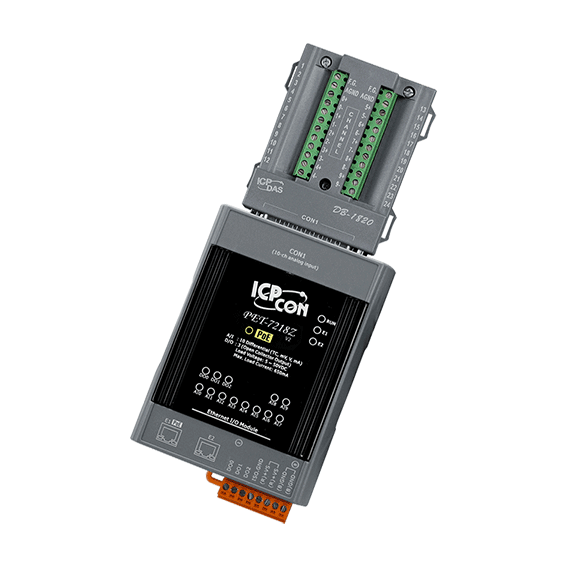

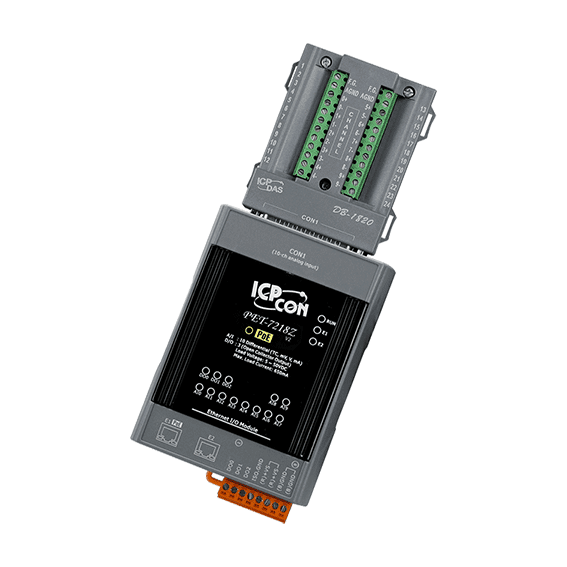

PET-7218Z/S PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs & 3-ch DO


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology with PoE
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • Thermocouple Input: 10 Channels
    • DO: 3 Channels


The ICP DAS PET-7218Z is a Power over Ethernet I/O Module with 10 channel Thermocouple input and 3 channel digital output. This Power over Ethernet I/O module is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. This module comes with daughter board for ease of use and also support current input and voltage input.

The ten input channels can be individually configured for different kinds of analog input, open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six digital output channels can be set as alarm outputs with short-circuit protection and overload protection.
