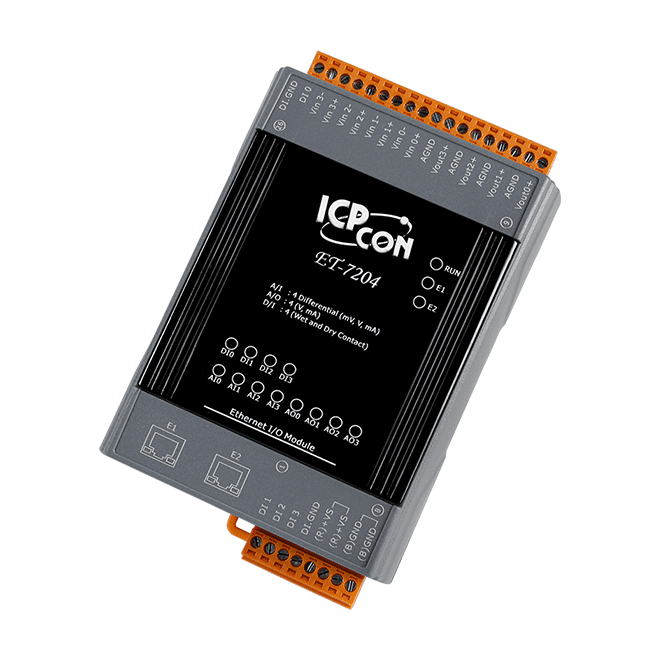

PET-7204 PoE Ethernet I/O Module with 2-port Ethernet Switch, 4-ch AI, 4-ch AO & 4-ch DI

£385.94

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • AI: 4 Channels
    • AO: 4 Channels
    • DI/Counter: 4 Channels

Description

The ICP DAS PET-7204 is a multi-function module with 4-channel analog inputs, 4-channel analog outputs and 4-channel digital inputs with PoE. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.

ET-7204_PET-7204
