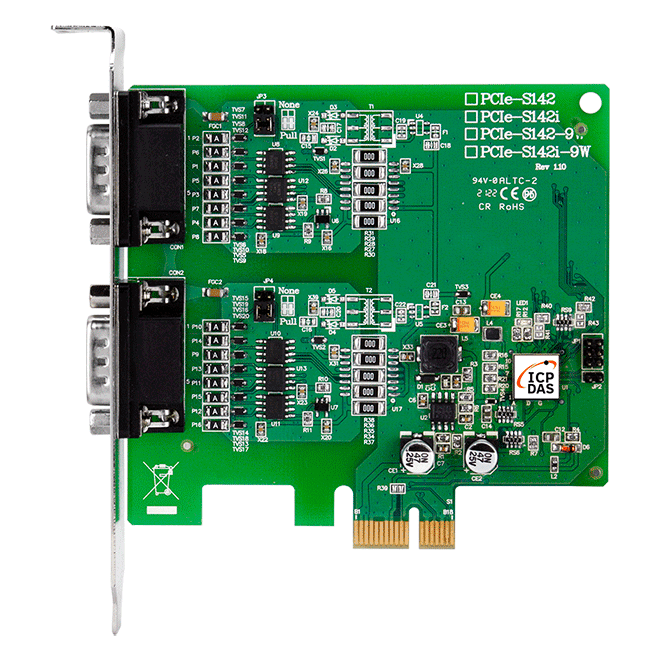

PCIe-S142 PCI Express, Serial Communication Board with 2 RS-422/485 ports


Key Features

  • Supports PCI Express x1
  • Provides 2 RS-422/485 ports
  • 256 KB Software Buffer (max.) for Each COM Port Under Windows
  • 128-byte Hardware FIFO for Each Port
  • Short Card Design


The ICP DAS PCIe-S142 series card provides 2 RS-422/RS-485 serial ports. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It supports for speed up to 921600 bps and supports full-duplex communication. Users may specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It’s practical for large file transmission.

The ICP DAS PCIe-S142 serial communication card is designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, and computers.
