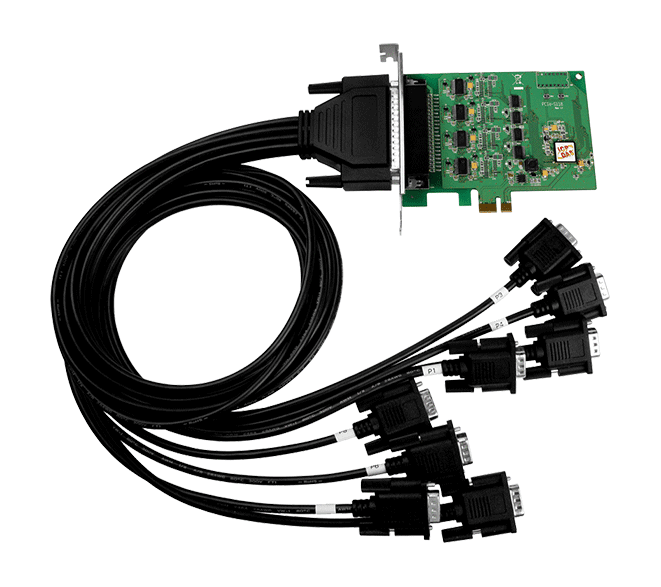

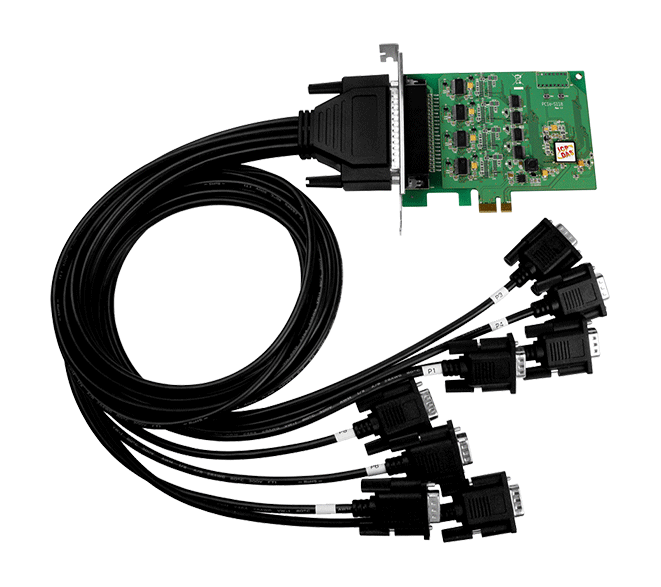

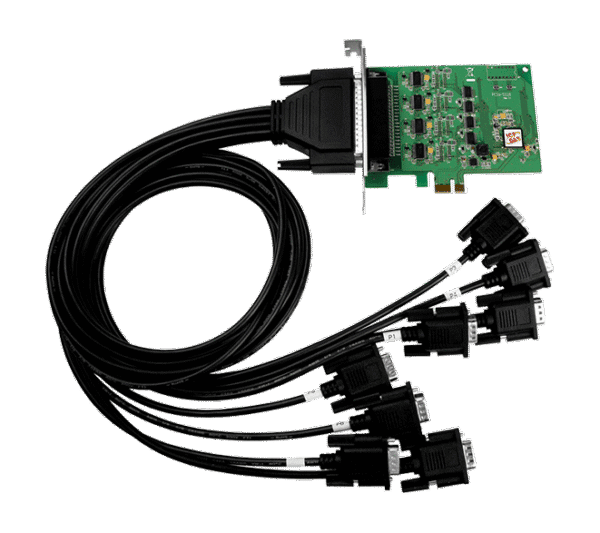

PCIe-S118/D2 PCI Express, Serial Communication Board with 8 RS-232 ports


Key Features

  • Supports PCI Express x1
  • Provides 8 RS-232 ports
  • Automatically select an available COM port number
  • Supports COM port number selection under software control
  • 256-byte Hardware FIFO for Each Port
  • Short Card Design
  • RoHS compliant & No Halogen


The ICP DAS PCIe-S118 card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 921600 bps and supports full-duplex communication. The PCIe-S118 card support drivers choose an available COM port number automatically.

In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current. The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
