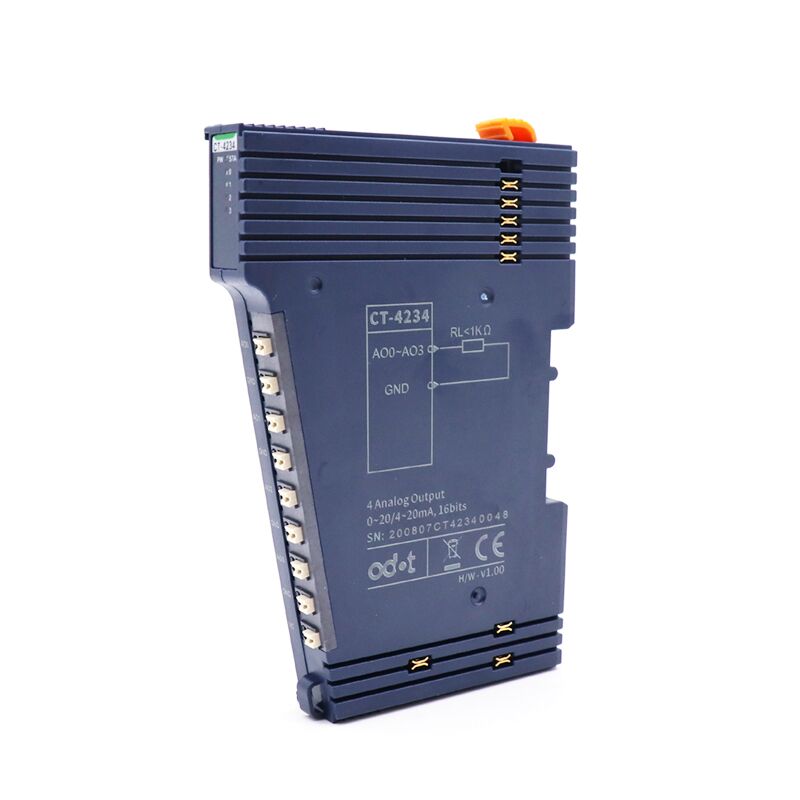

ODOT CT-4234 4-channel analog output (4-20mA)


Key Features

• Channel Number: 4 channels
• LED Indicator: 4 LED channel State indicators
• The output precision: >0.3%
• Resolution: 16 Bit
• Diagnostic function: Disconnection or overload, field power supply error
• The common terminal: 0V grounded together, channels are not isolated
• Conversion time: 2ms/ all channels
• Load: Max.1KΩ
•Operational Temperature: -40~85℃


The ODOT CT-4234 is a 16-bit 4-channel analog output module that can be integrated with the ODOT Network Adapters measure 0-20mA or 4-20mA process signals.

The ODOT CT-4234 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
