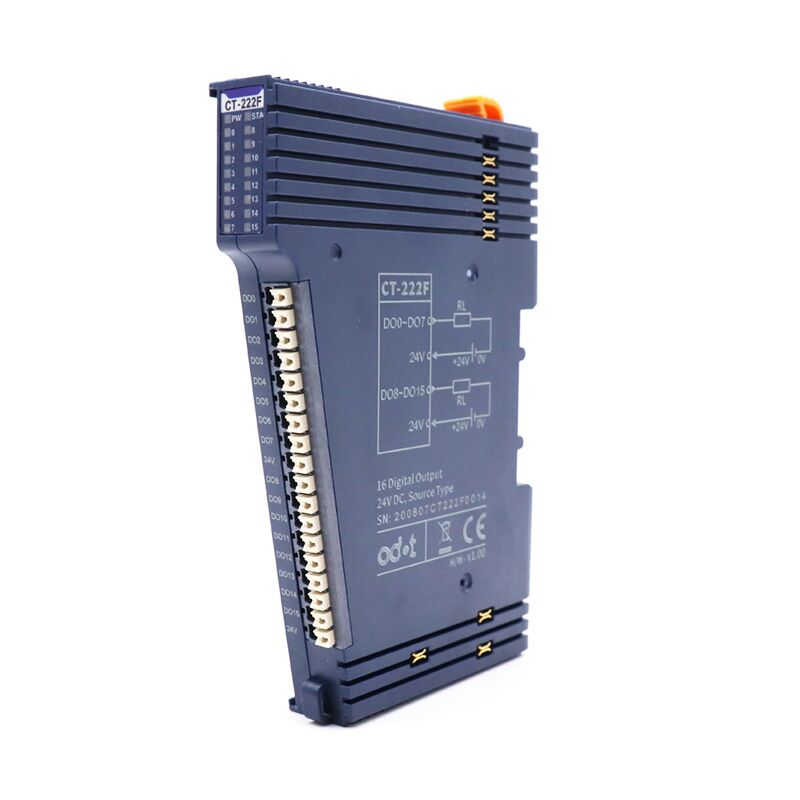

ODOT CT-222F 16 channel digital output (24VDC) source type


Key Features

• Channel Number:16 channel digital output/24VDC/ Source type
• LED Indicator: 16 output LED Indicators
• Rated current:Typical value: 500mA
• Leakage current: 10uA Max
• Output impedance:<200mΩ
• Protection Over-temperature shutdown: typical value 135℃
• Overcurrent protection: typical value 1.1A
• Short circuit protection support


The ODOT CT-222F is an I/O expansion module that supports 16 channels digital (source) output with 24 VDC voltage output and can be integrated with the ODOT Network Adapters.

The ODOT CT-222F can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
