ODOT CT-3158 8 Channel Voltage Input with 12-bit resolution

£125.85

Key Features

• Channel Number:8 Channels
• LED Indicator:8 Input LED Indicators
• Input Voltage Range:0~5VDC、0~10VDC、±5VDC、±10VDC
• Resolution: 12 Bit
• Accuracy: ±0.3%@25℃; ±0.5@-40~85℃
• Output Impedance: 1MΩ
• Common Terminal: Common Grounding Input

Description

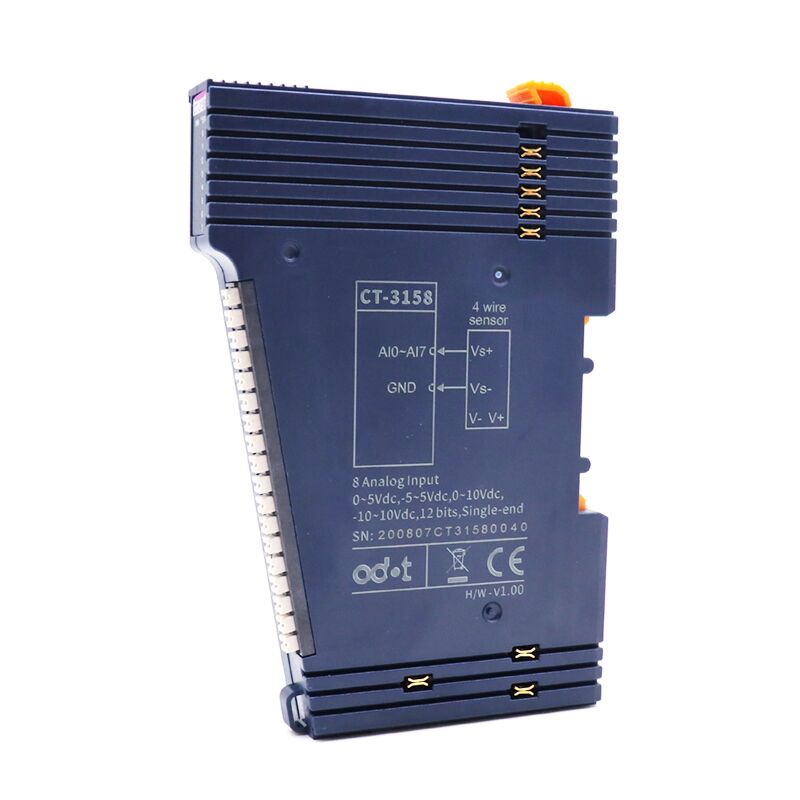

The ODOT CT-3158 is a 12-bit resolution 8 channel voltage input module that can be integrated with the ODOT Network Adapters to measure voltage inputs such as 0~5VDC/0~10VDC/±5VDC/±10VDC. This module is equipped with 8 analog input channel LED indicators and the input signals are single ended common grounding input.

The ODOT CT-3158 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

Remote-IO-System-C-Series-User-Manual-V1.17——2022.06.01
