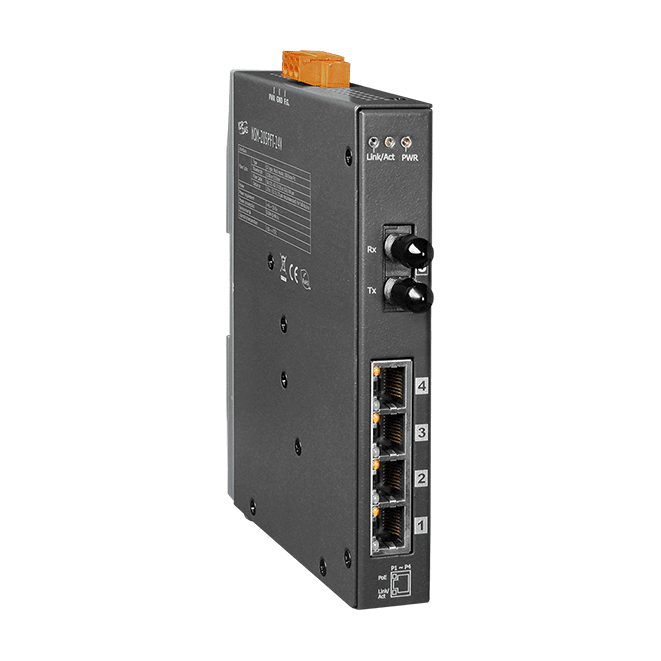

NSM-205PFT-24V 4-port 10/100 Mbps PoE (PSE) with 1 fiber port (Multi mode, ST connector) with +24 VDC Input (metal case)

£289.00

Key Features

• Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
• Each port supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 4 PoE ports with Power Sourcing Equipment (PSE) operation
• Automatic MDI/MDI-X crossover for plug-and-play
• Auto-detection of PD (powered devices) and automatic power management
• Over-temperature, over-current and over/under-voltage detection
• Supports operating temperatures from -30 ~ +75 °C
• Multi-mode, ST Connector Fiber supports
• DIN-Rail Mounting
CE UKCA FCC RoHS WEEE

Description

The ICP DAS NSM-205PFT-24V is a 4-port unmanaged PoE (PSE) with 1 fiber port switch; it supports 4 PoE ports which are classified as power source equipments (PSE). The NSM-205PFT-24V makes centralised power supply come true and provides up to 15.4 watts of power per PSE port.

Using fiber optics, users can prevent noise from interfering with their system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions. The ICP DAS NSM-205PFT-24V is designed with 24 VDC to 48 VDC boost for PoE application where 48 VDC power supply is not available.
