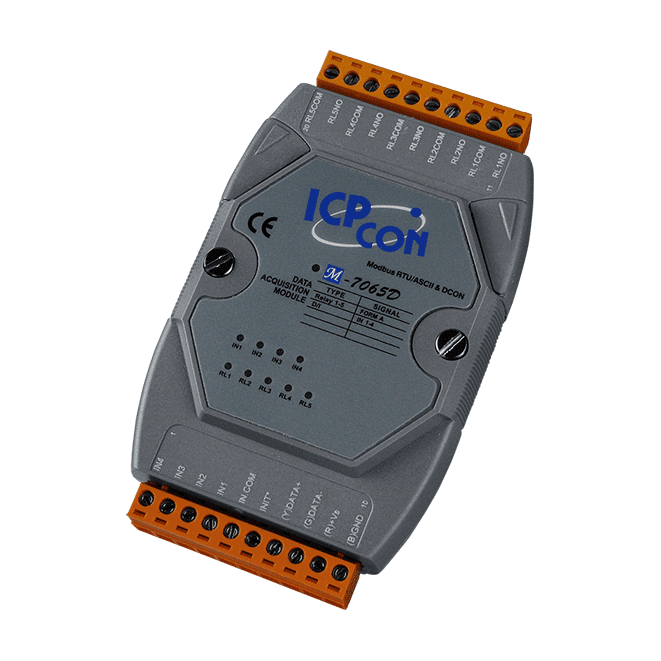

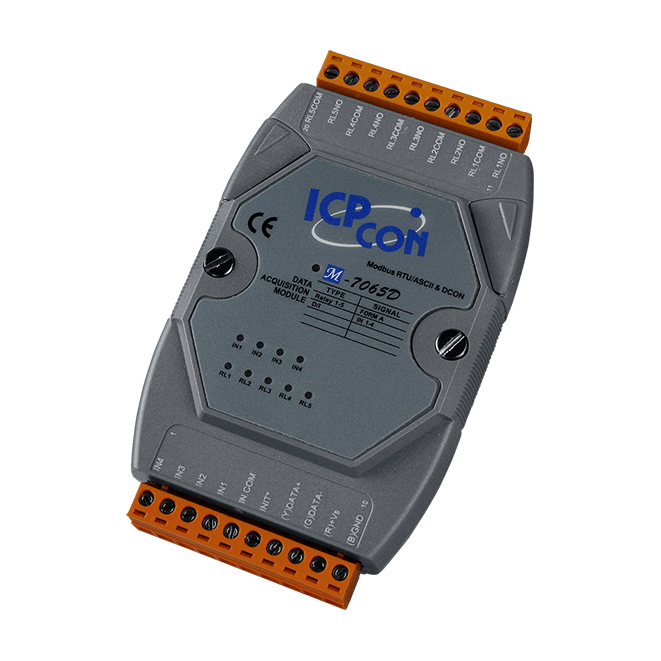

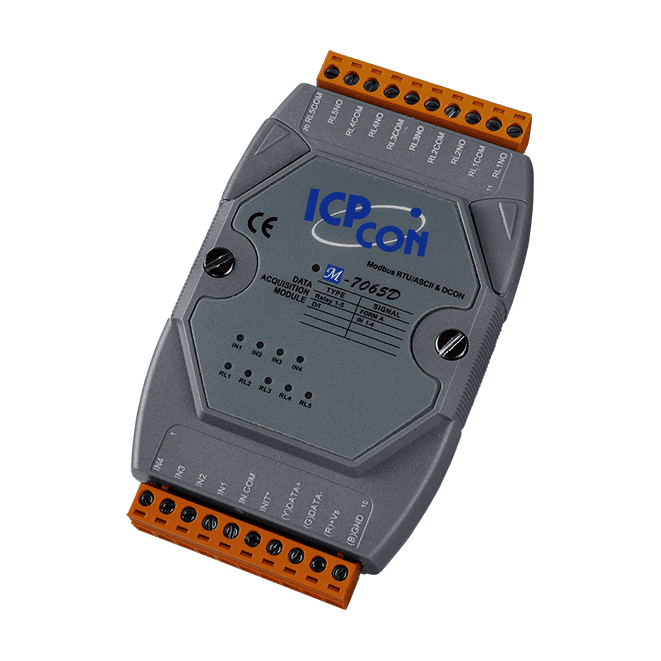

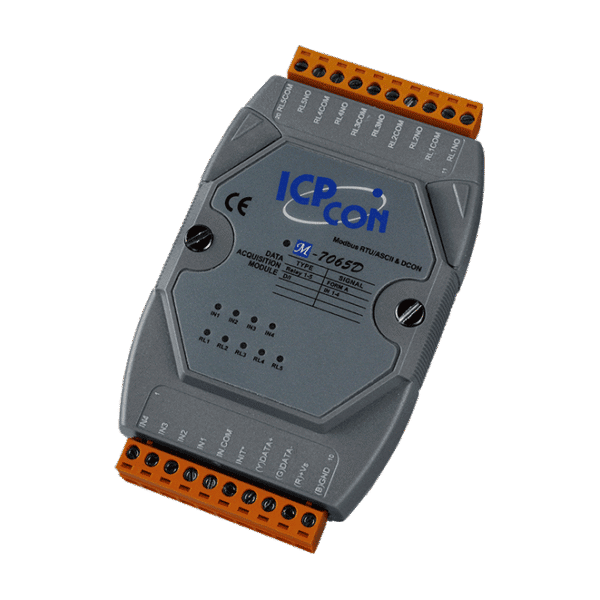

M-7065D 4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch Power Relay Module with LED Display, using DCON and Modbus Protocols


Key Features

• 4 Digital Input channels and 5 Relay Output channels
• Form A Power Relay Output
• Sink- and Source-type for Digital Input
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value and Safe Value Settings
• Built-in Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C


The ICP DAS M-7065/M-7065D provides 4 digital input channels and 5 Form A relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. M-7065D provides 9 LED indicators that can be used to monitor the status of the digital input and relay output.

The M-7065(D) supports both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
