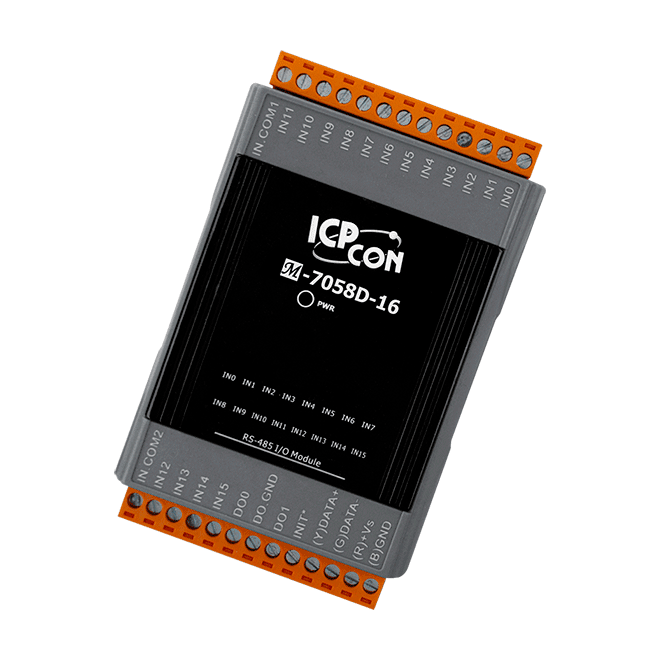

M-7058D-16-G 16-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI & 2-ch (Sink, NPN) DO Module with LED Display


Key Features

  • Supports AC/DC Digital Input
  • 16 Digital Inputs and 2 Digital Outputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog


The ICP DAS M-7058-16/M-7058D-16 provides 16 channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters.

The M-7058D-16 has 16 LED indicators for channel status monitoring. The M-7058(D)-16 provides ±4 kV ESD, ±4 kV EFT, and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments..


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
