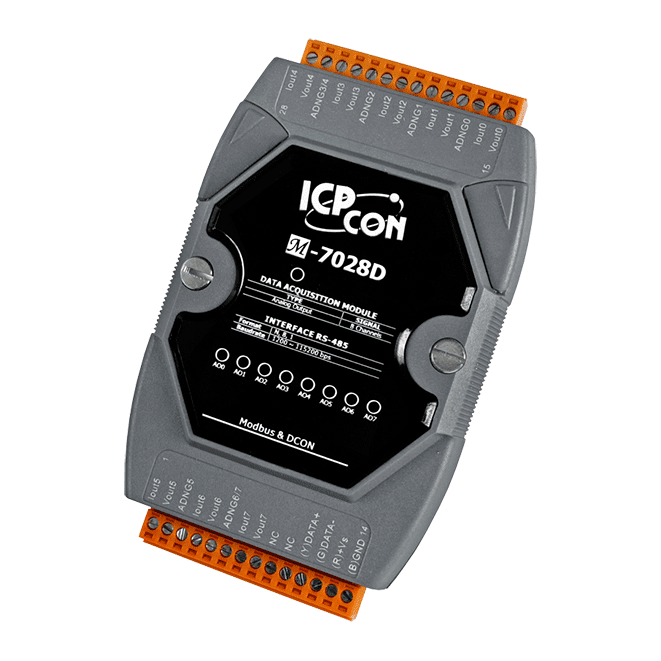

M-7028D-G 8-ch 12-bit AO Module with LED Display


Key Features

  • 8 Analog Outputs
  • Source-type Current Output
  • 12-bit Analog Output
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • RF Immunity
  • Configurable Power-on Value and Safe Value Settings


The ICP DAS M-7028/M-7028D is a 12-bit, 8-channel analog output module with 8 LEDs for channel status monitoring. It provides a programmable output range on all analog output channels (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA).

Each analog output channel can be configured for an individual range. The module also features per-channel open wire detection for the +4 ~ +20 mA output, together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation. The M-7028(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
