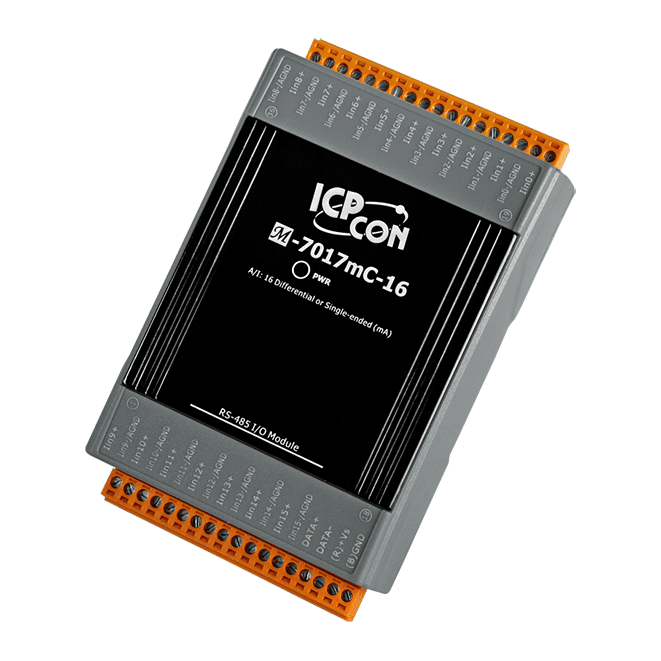

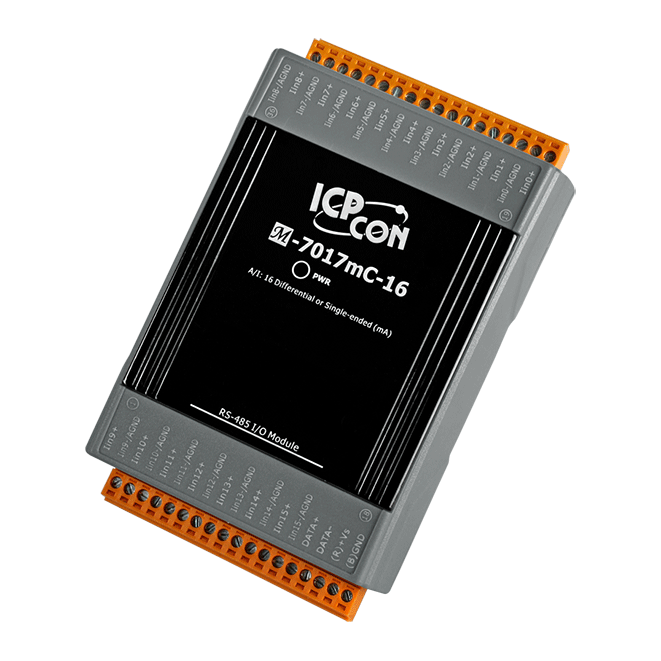

M-7017mC-16-G 16-ch Current Input Module with Data Logger


Key Features

  • 16 Current Inputs
  • Built-in Resistor to Simplify Current Measurement
  • Jumper Selectable Differential or Single-ended Wiring
  • 16-bit Resolution
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Storage for up to 100,000 Records from16 Current Inputs
  • Built-in Dual Watchdog


The ICP DAS M-7017mC-16 is a 16-channel current input module that is specifically designed to measure current only. Its user-friendly design saves both time and effort when measuring current thanks to built-in resistors, meaning that you can now measure current directly without adding an external resistor. The module also provides 4 kV ESD protection and 110 VDC overvoltage protection for the current input and features 3000 VDC intra-module isolation and open wire detection for 4 ~ 20 mA input.

The sampling rate of the M-7017mC-16 is adjustable, meaning that either fast mode or normal mode can be set. The module contains a data logger that can be used to record the current input from all 16 channels, including date and time stamps, and can store up to 100,000 downloadable records.

LogReader is a simple tool that can be used to read the log data of the module and then export it to a CSV file. The user can download it from the Download Center.


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
