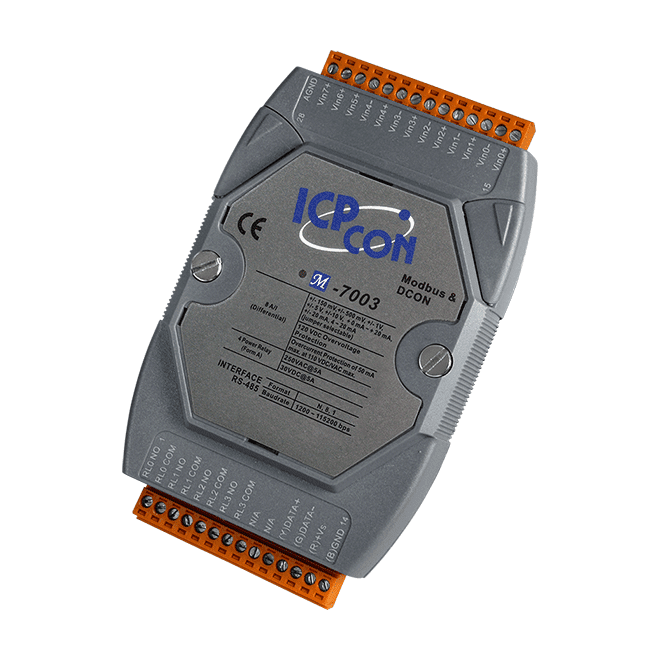

M-7003-G 8-ch AI & 4-ch Relay Module using DCON and Modbus Protocol


Key Features

  • Voltage and Current Inputs
  • Relay Outputs
  • High Resolution: 16-bit
  • Photocoupler Isolation
  • Built-in Dual Watchdog


The ICP DAS M-7003 module features 16-bit resolution, 8-channel analog input, and 4-channel relay output module. All of its channels are Form A type relay module that provides programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, and 4 ~ 20 mA).

Each analog channel is allowed to configure an individual range and has 120 VDC high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of the M-7003 is changeable; there are fast mode and normal mode for your consideration. The M-7003 also has a qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
