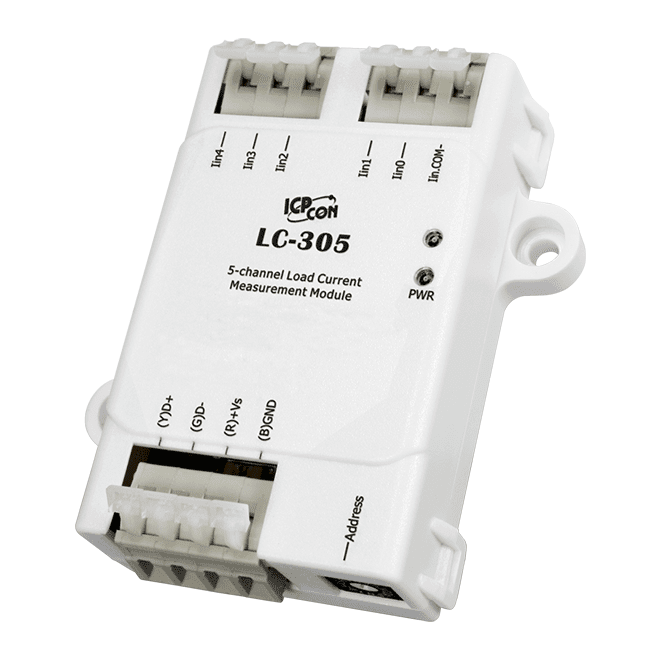

LC-305 5-channel AC Load Current Measurement Module


Key Features

  • 5-channel AC Load Current Measurement
  • AC Current Input Ranges from 0 to 5 A
  • Load Current Measurement Accuracy 3%
  • Dual Watchdog
  • Support DCON and Modbus RTU Protocol
  • Tiny Form Factor with Easy Screw Mounting


The ICP DAS LC-305 is a 5-channel AC Load Current Measurement Module. The LC-305 is fully RoHS-compliant and has qualification for 4 kV ESD protection and 2000 VDC intra-module isolation is also provided.

When required, communication with the ICP DAS LC-305 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set via hardware configuration. The module can measure the load current of each lamp to verify if the lamp is normal or failed; check if the bulb begins to fade and needs to be replaced; and see if there is carbon-buildup depositing on the relay contacts which may makes the relay become sticky.
